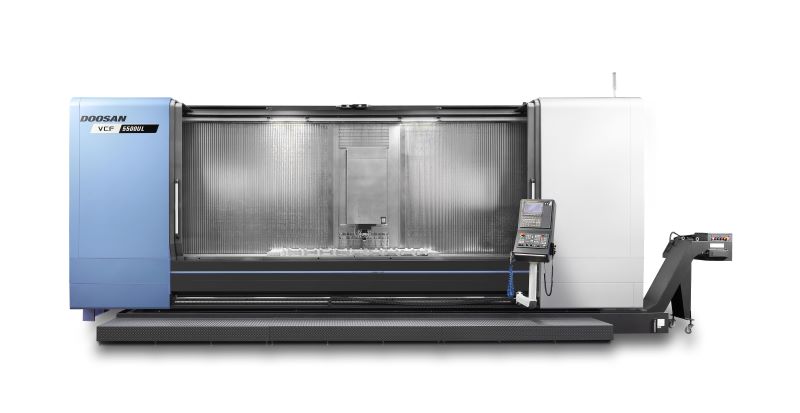

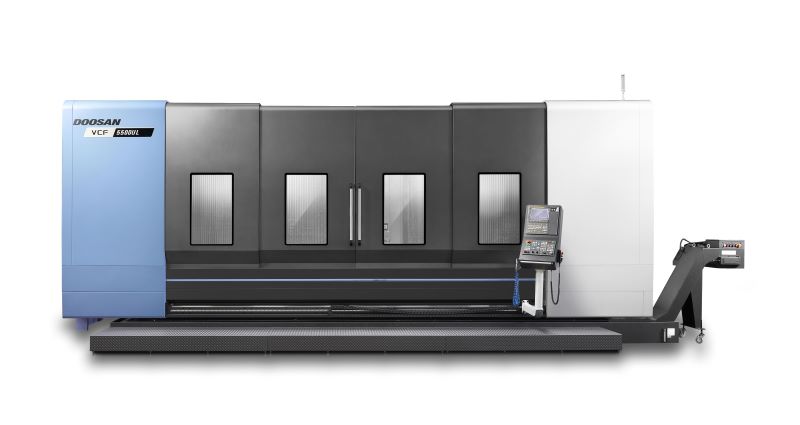

Fixed table, column moving structure realizes compact machine size with a wide X axis.
Roller-type LM Guides are provided to enhance the rigidity. Applied the linear scale as a standard on X axis.
Direct-coupled type spindles have been adopted as a standard feature to further reduce vibration and noise while enhancing productivity, work environment and machining accuracy.
The reliable magazine have been adopted to reduce vibration caused by operating magazine while machining. Tool storage capacity can be applied to 35 tools.
|
Description
|
Unit
|
VCF 5500UL
|
|
|
|
|
|
|
Travels
|
Travel distance (X / Y / Z axis)
|
mm (inch)
|
5000 / 550 / 570
(196.9 / 21.7 / 22.4)
|
|
|
Rapid traverse rate (X / Y / Z axis)
|
m/min (ipm)
|
30 / 36 / 46
(1181.1 / 1417.3 / 1811.0)
|
|
Spindle
|
Max. spindle speed
|
r/min
|
12000
|
|
Max. Spindle power
|
kW (Hp)
|
18.5 (24.8)
|
|
Max. spindle torque
|
N·m (ft-lbs)
|
117.8 (86.9)
|
|
Table
|
Table size
|
mm (inch)
|
5600 x 550 (220.5 x 21.7)
|
|
Table loading capacity
|
kg (lb)
|
6000 (13227.5)
|
|
Automatic
|
Type of tool shank
|
-
|
BT 40 {CAT 40 / DIN 40}*
|
|
Tool
|
|
|
|
|
Changer
|
Tool storage capa.
|
ea
|
35
|
