Easy operator access and excellent chip disposal
Designed with 2 doors for easy operator access to the working area
Bed flushing is applied to both left and right sides to optimize chip removal even when high volume chips are produced during cutting.
Standard Direct-Coupled Spindle for Higher Productivity
The direct coupled spindle reduces vibration and noise,thereby improving the machines performance and environmental-friendliness compared to belt drive type
Higher productivity is achieved by improving all axes feed system acc/dec times.
An environmental-friendly machine designed for stable and easy operation
Thermal error compensation function fitted as standard optimizes machine accuracy by reducing the effects of heat build-up during extended periods of operation.
The Easy Operation function (EOP) can be viewed in the pop-up window of the main NC screen for convenient machine operation.
Grease lubrication for axis roller guideways is a standard feature and reduces contamination of the operator’s environment.

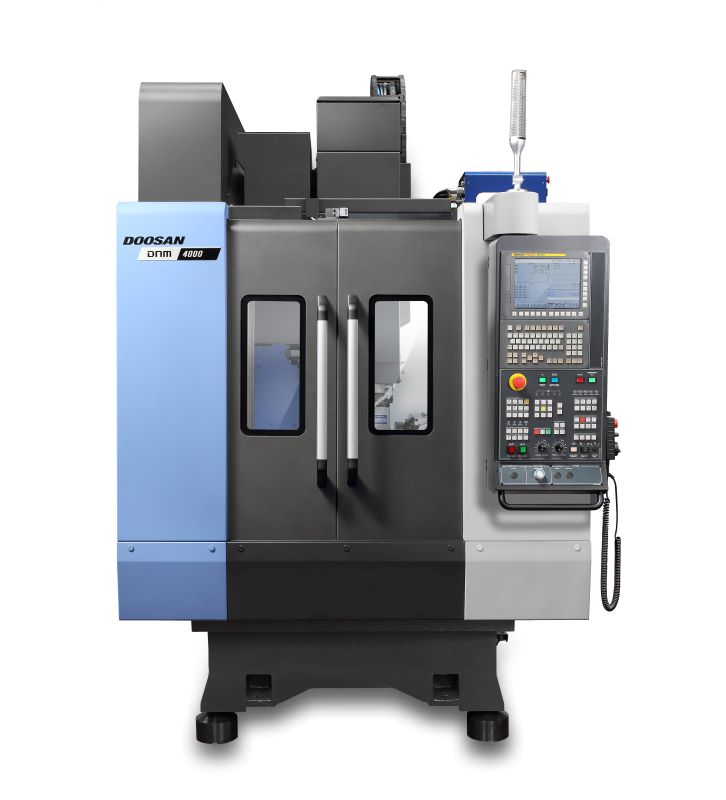

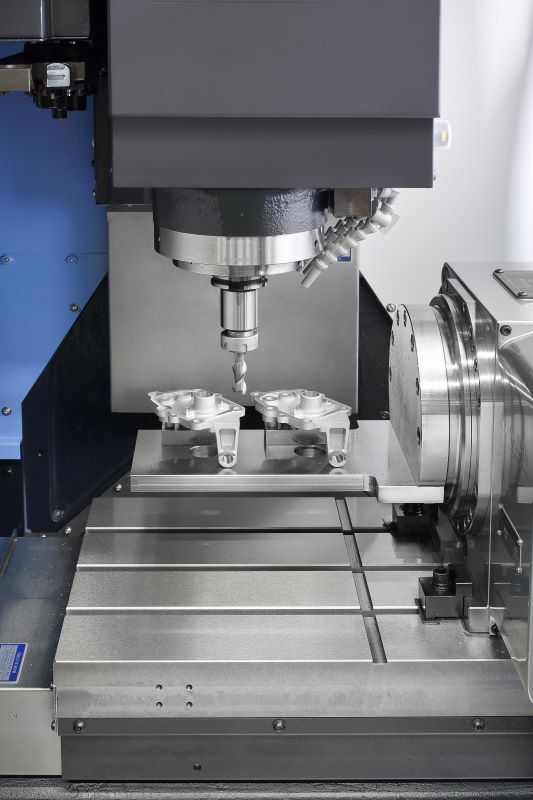

Designed as a compact size with #40 spindle, the DNM 4000 offers a high productivity and cutting performance.
Environmentally friendly grease lubrication is adopted as standard for all the axis feed system,and roller-type LM Guides are provided to enhance the rigidity.
Increased table size and maximum load capacity are included to offer maximum workpiece capacity even in the same floor space as previous model.
Direct-coupled type spindles with dual contact tool system have been adopted as a standard feature to further reduce vibration and noise whileenhancing productivity,work environment and machining accuracy.
The highly-reliable tool magazine can accommodate up to 20 tools as standard.
The high rigidity machine structure with 40 taper spindle provides the best machining performance in its class.
Various optional features are available to satisfy customers’ specific machining applications.
FANUC CNC has been optimized for Doosan'smachine tools to maximize productivity.
The newly-designed operation panel enhances operating convenience by common-design buttons and layout. Just like a PC, the QWERTY type keyboard has been adopted for easier and faster operation.
|
Description
|
Features
|
DNM 4000
|
|
Spindle
|
12000 r/min
|
Direct
|
18.5/11 kW (24.8/14.8 Hp)
|
●
|
|
Spindle cooling system (Oil cooler)
|
12000 r/min
|
Direct
|
○
|
|
Magazin
|
Tool storage capacity
|
20 ea
|
●
|
|
Tool shank type
|
ISO #40
|
BIG PLUS BT40
|
●
|
|
BIG PLUS CAT40
|
○
|
|
BIG PLUS DIN40
|
○
|
|
Coolant
|
FLOOD
|
0.15 MPa (0.4 kW)
|
●
|
|
TSC
|
None
|
●
|
|
2 MPa (1.5kW)
|
○
|
|
SHOWER
|
0.1 MPa (1.1 kW)
|
○
|
|
FLUSHING
|
0.1 MPa (1.1 kW)
|
●
|
|
Oil skimmer
|
Belt type
|
○
|
|
MQL
|
○
|
|
Coolant level switch : Sensing level - Low / High**
|
○
|
|
Chip disposal
|
Chip pan
|
●
|
|
Chip conveyor
|
Hinged type(Rear)
|
○
|
|
Magnetic scraper type(Rear)
|
○
|
|
Chip bucket
|
○
|
|
Air blower
|
○
|
|
Air gun
|
○
|
|
Coolant gun
|
○
|
|
Mist collector
|
○
|
|
Precision machining options
|
Thermal comphensation
|
●
|
|
AICC I (40block)
|
○
|
|
AICC II (200block)
|
○
|
|
Measurement & Automation
|
Automatic tool measurement
|
TS27R
|
○
|
|
Automatic tool breakage detection
|
○
|
|
Automatic workpiece measurement
|
OMP60
|
○
|
|
Automatic front door with safety device
|
○
|
|
Others
|
LED Work light
|
●
|
|
3 Color signal tower
|
●
|
|
4th axis auxiliary device interface
|
○
|
|
Tool load monitoring
|
●
|
|
EZ Guide i
|
○
|
|
Automatic power off
|
○
|
| |
|
|
|
|
|
