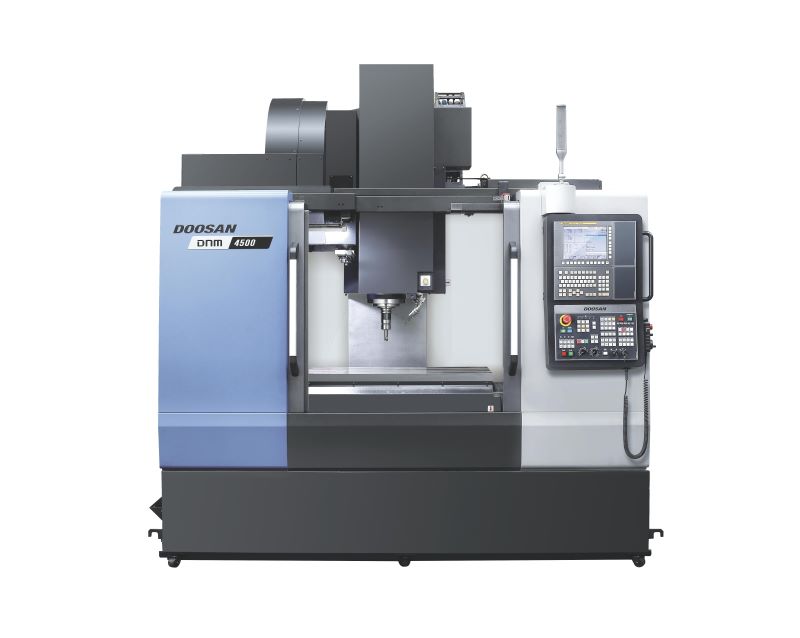

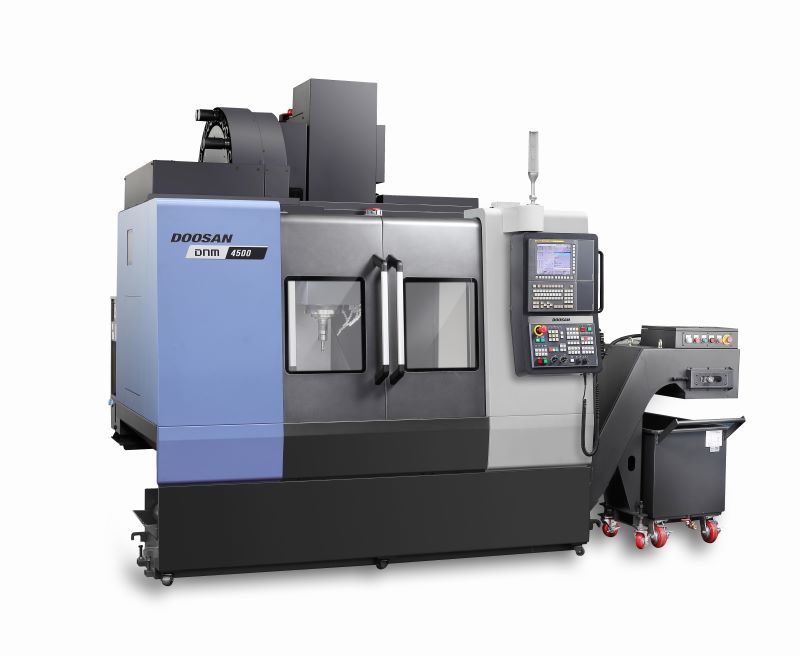

Building on the history of the well proven and successful DNM and DNM ll series, the new version DNM series boasts
even greater reliability and performance. In addition, the new series includes grease lubrication to the roller guideways
for more environmental-friendliness. The design concepts of the DNM4500, DNM5700 and DNM6700 are high speed,
high rigidity and suitability for universal applications. Standard features are the largest machining space in its class,
direct coupled spindle, roller guideways and thermal error compensation to provide optimum precision.
|
Description
|
Unit
|
DNM 4500
|
DNM 5700
|
DNM 6700
|
DNM 6700L
|
DNM 6700XL
|
|
Travels
|
Travel distance
|
X axis
|
mm (inch)
|
800 (31.5)
|
1050 (41.3)
|
1300 (51.2)
|
1500 (59.1)
|
2100 (82.7)
|
|
Y axis
|
mm (inch)
|
450 (17.7)
|
570 (22.4)
|
670 (26.4)
|
|
Z axis
|
mm (inch)
|
510 (20.1)
|
510 (20.1)
|
625 (24.6)
|
|
Distance from spindle nose to table top
|
mm (inch)
|
150~660 (5.9~26.0)
|
150~775 (5.9~30.5)
|
|
Table
|
Table size
|
mm (inch)
|
1000 x 450
(39.4 x 17.7)
|
1300 x 570
(51.2 x 22.4)
|
1500 x 670
(59.1 x 26.4)
|
1600 x 670
(63.0 x 26.4)
|
2200 x 670
(86.6 x 26.4)
|
|
Table loading capacity
|
kg (lb)
|
600 (1322.8)
|
1000 (2204.6)
|
1300 (2866.0)
|
|
Table surface type
|
mm (inch)
|
T-SLOT
(3-125(4.9) x
18(0.7)H8)
|
T-SLOT
(4-125(4.9) x
18(0.7)H8)
|
T-SLOT
(5-125(4.9) x 18(0.7)H8)
|
|
Spindle
|
Taper
|
-
|
ISO #40
|
|
Max.
spindle speed
|
Fanuc
|
r/min
|
8000 {8000*, 12000, 15000}
|
|
Siemens
|
r/min
|
12000 {15000}
|
|
Heidenhain
|
r/min
|
12000 {15000}
|
|
Max.
Spindle power
|
Fanuc
|
kW (Hp)
|
18.5/11 (24.8/14.8)
{15/11 (20.1/14.8)*,
18.5/11 (24.8/14.8),
18.5/11 (24.8/14.8)}
|
18.5/15 (24.8/20.1)
{15/11 (20.1/14.8)*,
18.5/11 (24.8/14.8),
18.5/11 (24.8/14.8)}
|
|
Siemens
|
kW (Hp)
|
16.5/11 (22.1/14.8)
{16.5/11 (22.1/14.8)}
|
21.8/16.3 (29.2/21.9)
{16.5/11 (22.1/14.8)}
|
|
Heidenhain
|
kW (Hp)
|
17/10 (22.8/13.4)
{17/10 (22.8/13.4)}
|
32/15 (42.9/20.1)
{17/10 (22.8/13.4)}
|
|
Max.
spindle torque
|
Fanuc
|
N·m (lbf-ft)
|
117.8 (86.9) {286 (211.1)*, 117.8 (86.9), 117.8 (86.9)}
|
|
Siemens
|
N·m (lbf-ft)
|
141.3 (104.3) {141.3 (104.3)}
|
150.1 (110.7) {141.3 (104.3)}
|
|
Heidenhain
|
N·m (lbf-ft)
|
108.2 (79.9) {108.2 (79.9)}
|
203.7 (150.2) {108.2 (79.9)}
|
|
Feedrates
|
Rapid traverse rate
|
X axis
|
m/min (ipm)
|
36 (1417.3)
|
30 (1181.1)
|
|
Y axis
|
m/min (ipm)
|
36 (1417.3)
|
30 (1181.1)
|
|
Z axis
|
m/min (ipm)
|
30 (1181.1)
|
|
Automatic Tool Changer
|
Type of tool shank
|
Tool shank
|
-
|
BT 40 {CAT 40 / DIN 40}
|
|
Pull stud
|
-
|
PS806 {Modified DIN / DIN 69872 #40}
|
|
Tool storage capa.
|
ea
|
30 {40, 60}
|
|
Max. tool diameter
|
Continous
|
mm (inch)
|
80 (3.1) {76 (3.0)}
|
|
Without Adjacent Tools
|
mm (inch)
|
125 (4.9)
|
|
Max. tool length
|
mm (inch)
|
300 (11.8)
|
|
Max. tool weight
|
kg (lb)
|
8 (17.6)
|
|
Max. tool moment
|
N·m (ft-lbs)
|
5.88 (4.3)
|
|
Tool selection
|
|
MEMORY RANDOM
|
|
Tool change time (Tool-to-tool)
|
sec
|
1.2
|
|
Tool change time (Chip-to-chip)
|
sec
|
3.2
|
3.5
|
|
Power source
|
Electric power supply(rated capacity)
|
kVA
|
29.6
|
38.1
{33.0**}
|
40 {35}*
|
|
Compressed air supply
|
MPa (psi)
|
0.54 (78.3)
|
|
Tank capacity
|
Coolant tank capacity
|
L (gal)
|
260 (68.7)
|
310 (81.9)
|
325 (85.9)
|
430 (113.6)
|
440 (116.2)
|
|
Machine Dimensions
|
Height
|
mm (inch)
|
2985 (117.5)
|
3120 (122.8)
|
|
Length
|
mm (inch)
|
2160 (85.0)
|
2415 (95.1)
|
2605 (102.6)
|
3070 (120.9)
|
|
Width
|
mm (inch)
|
2465 (97.0)
|
2960 (116.5)
|
3200 (126.0)
|
3650 (143.7)
|
4800 (189.0)
|
|
Weight
|
kg (lb)
|
4500
(9920.7)
|
6450
(14219.6)
|
8000
(17636.7)
|
9000
(19841.3)
|
10000
(22045.9)
|
|
Contrel
|
NC system
|
-
|
DOOSAN FANUC i / SIEMENS S828D / HEIDENHAIN TNC620
|
