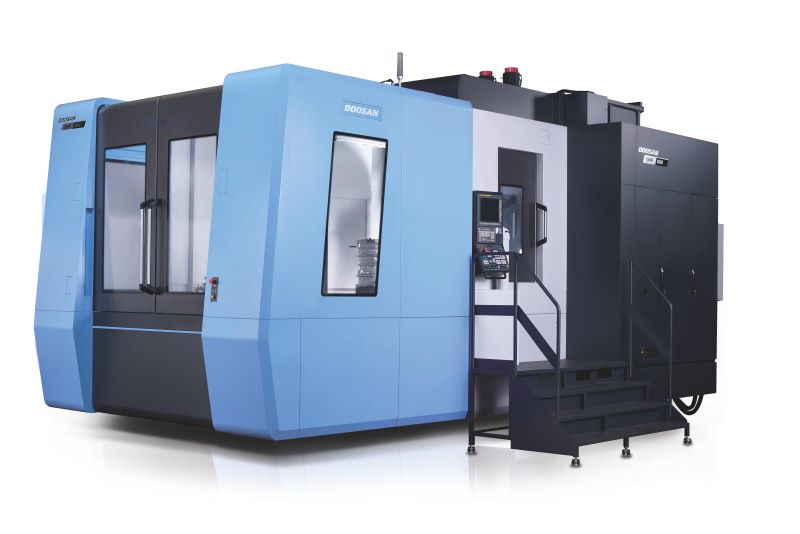

High productivity, single setup with simultaneous 5 axis machining

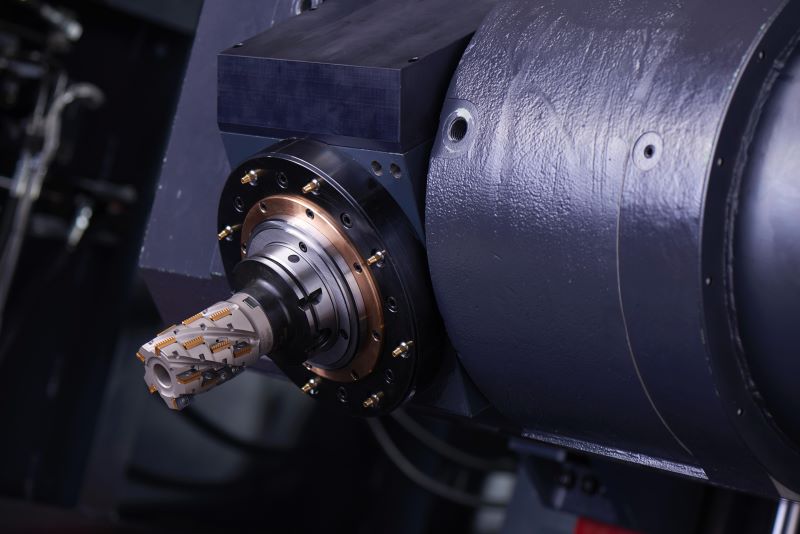

A axis nodding head spindle
Travel (x / y / z) : 1450 / 1200 / 1500 mm (57.1 / 47.2 / 59.1 inch)
Max. Workpiece size : Ø1400 X H1400 mm (Ø55.1 X H55.1 inch)
high rigidity & Compact structure

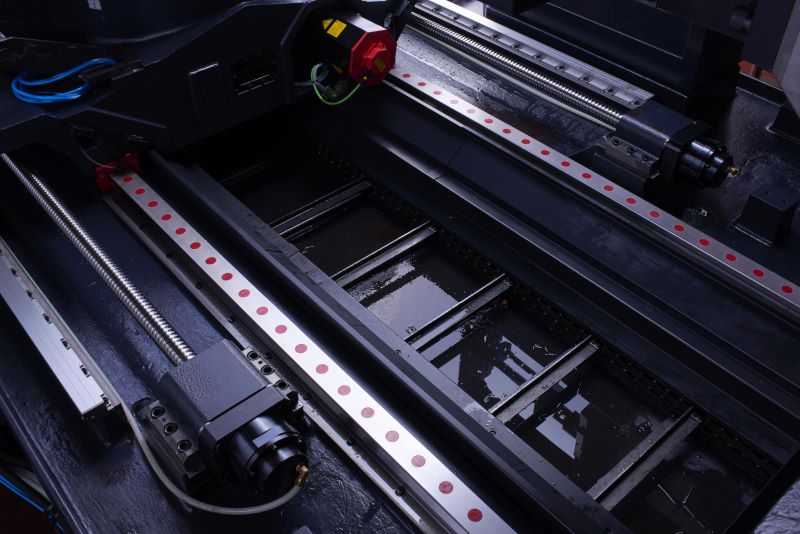

Y/Z Dual ball screw
Thermal compensation for Spindle & Structure
Cooling system
Linear scale
User friendly convenience features
Improved rear exit central through chip disposal
Power pack, multi-step TSC
To handle various complex shapes, we applied the A axis nodding head spindle to achieve simultaneous 5 axis machining. Dual ballscrews are applied to the X / Y axes for highly stable machining.
Provides great cutting performance using 2 step geared spindle head for hard materials, and high speed built in type spindle head for Aluminium.
Maximizing working area with 800 pallet size.
Applied servo type magazine to improve productivity and reliability.
An automatic twin pallet changer is provided as standard. Doosan’s LPS multi-pallet system is also available.
High-rigidity machining can be carried out with precision accuracy using a variety of functions.
Excellent machining capability due to machine structure and spindle performance.
Various optional features are available for customer-specific work environments.
Doosan's Easy Operation Package (EOP) supports the user with tool, help desk, operation, and pallet magazine functions among others.
User convenience has been significantly enhanced with a new operation panel.
Simple and Convenient Operation Panel
The operator’s panel has been redesigned and integrated for better usability. Additional, customized function switches (option) can be provided to maximize the operator's convenience.
|
Description
|
Features
|
|
Spindle
|
6000 r/min
|
35 kW (46.9 Hp),
960 N·m (708.5 ft-lbs)
|
|
15000 r/min(SIEMENS)
|
86 kW (115.3 Hp),
223 N·m (164.6 ft-lbs)
|
|
15000 r/min(FANUC)
|
51 kW (68.4 Hp),
147 N·m (108.5 ft-lbs)
|
|
Magazine
|
Tool storage capacity
|
60 ea
|
|
90/120/150/196~376 ea
|
|
Tool shank type
|
BIG PLUS BT50
|
|
BIG PLUS CAT50
|
|
BIG PLUS DIN50
|
|
HSK A100
|
|
Coolant
|
FLOOD
|
0.7 MPa (1.5 kW)
|
|
FLUSHING
|
0.3 MPa (1.5 kW)
|
|
PROGRAMMABLE TSC
|
1~7 MPa (7.5kW)
|
|
SHOWER
|
0.7 MPa (1.5kW)
|
|
Coolant level switch : Sensing level - Low / High
|
|
Chip disposal
|
Chip conveyor
|
2-step drum type
|
|
Chip bucket
|
Folklift type
|
|
Rotation type
|
|
Air blower
|
|
Air gun
|
|
Coolant gun
|
|
Precision machining option
|
Linear scale
|
X / Y / Z-axis
|
|
DSQ3 (600 Block, High Process CPU, Data Server 1GB)
|
|
DSQ4 (1000 Block, High Process CPU, Data Server 1GB)
|
|
Data Server 2G/4G/16GB
|
|
Measurement &
Automation
|
Automatic tool measurement
|
TS27R_RENISHAW
|
|
OTS_RENISHAW
|
|
Automatic workpiece measurement
|
RMP60_RENISHAW
|
|
Others
|
LED Work light
|
|
Signal tower
|
|
Tool load monitoring
|
|
EZ Guide i
|
|
Automatic power off
|
