Improved Productivity with High Performance SpecificationsHigh torque gearbox spindle, box-type guideways, and high rigidity cast structure achieves high productivity.

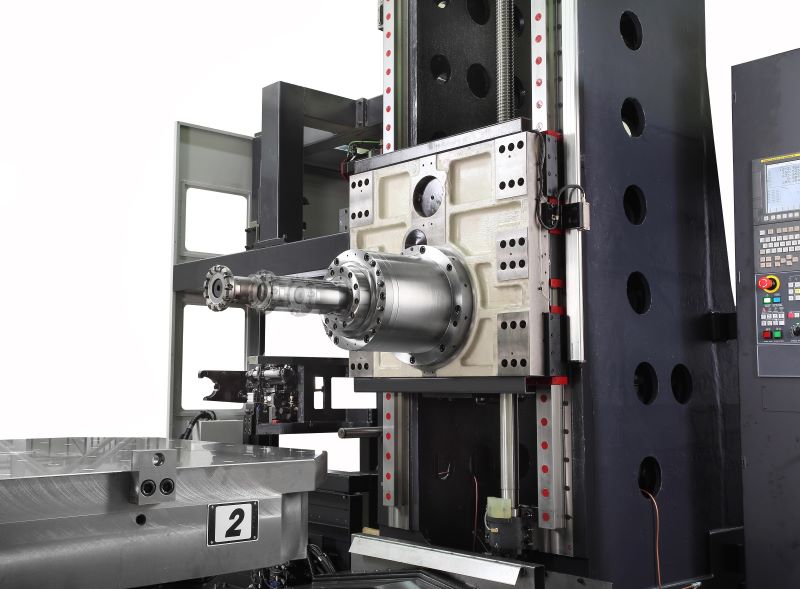

General type and optional W axis applications A wide variety of large workpieces can be handled due to the machine's large capacity and optional W axis for long boring applications.
Ready for Automation with Standard Pallet Change System The shuttle-type pallet changer satisfies the needs for long-term operation and automation.

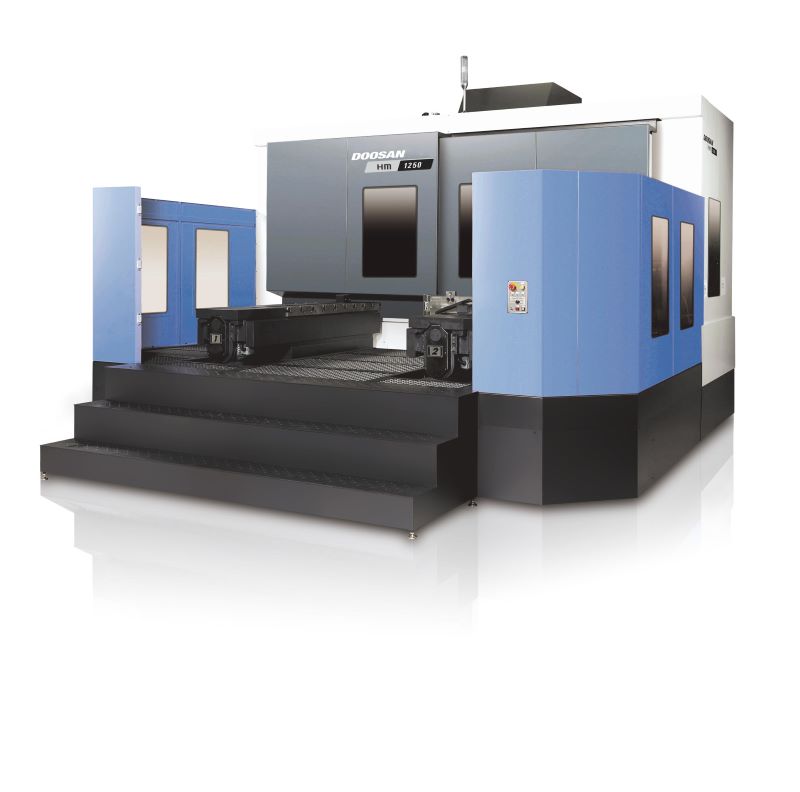

High rigidity bed supports high accuracy.Designed for for large workpieces requiring heavy duty cutting performance, the HM1000/1250/1250W offer the solution for various requirements.
Rigidity has been enhanced with box guideways.All the linear axes are driven by high precision preloaded ballscrews to minimise thermal error. They are coupled directly to the absolute-type servo motor to optimise accuracy.
Gearbox driven spindle realizes high productivity.High torque spindle, dual contact tool system, and spindle cooling system adopted as standard realize high stability and reliability.
Adopted as a standard feature, the oil cooler system minimizes thermal error over an extended time of operation the oil cooler system minimises thermal error over an extended period of operation.
Reliability is further improved with the adoption of servo motors and the tool storage capacity can be extended up to 196 tools.
High durability and reliability are achieved by servo motors. Correct tool selection is guaranteed by fixed address system.

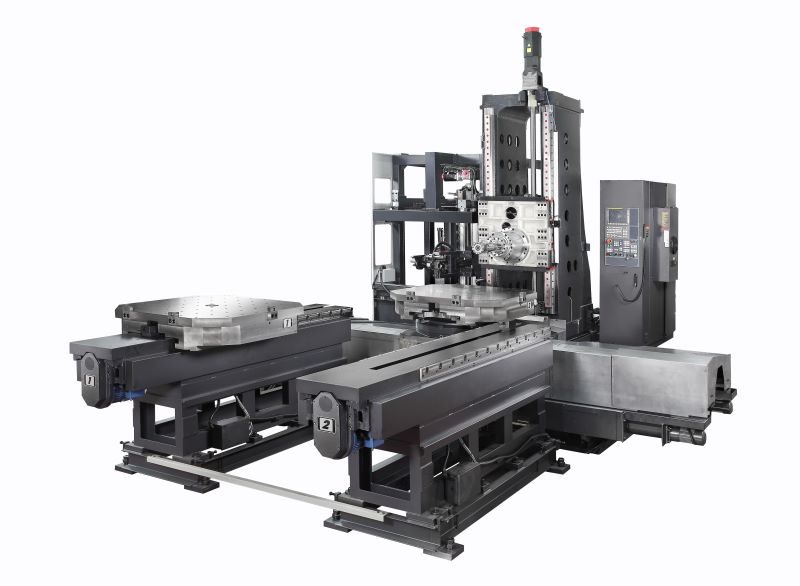

The table capacity is suitable for large workpieces .The shuttle-type, automatic pallet changer as standard specification improves productivity.
Diverse optional features are available for customer-specific requirements.
The PMG system is composed of a rotating pallet pool storage unit and a feed mechanism to transfer the pallet to and from the machine working area. In addition, a pallet can be transferred to a separate setup station where the operator has allround access for loading the workpiece.
User convenience has been significantly enhanced with a new operation panel.
The operator’s panel has been redesigned and integrated for better usability. Additional, customized function switches (option) can be provided to maximize the operator's convenience.
Doosan's Easy Operation Package (EOP) supports the user with tool, help desk, operation, and pallet magazine functions among others.
Doosan's EOP supports the user with tool, help desk, operation, and pallet magazine functions among others to maximize operational efficiency and user convenience.
