General machining performance to apply high rigidity structure.

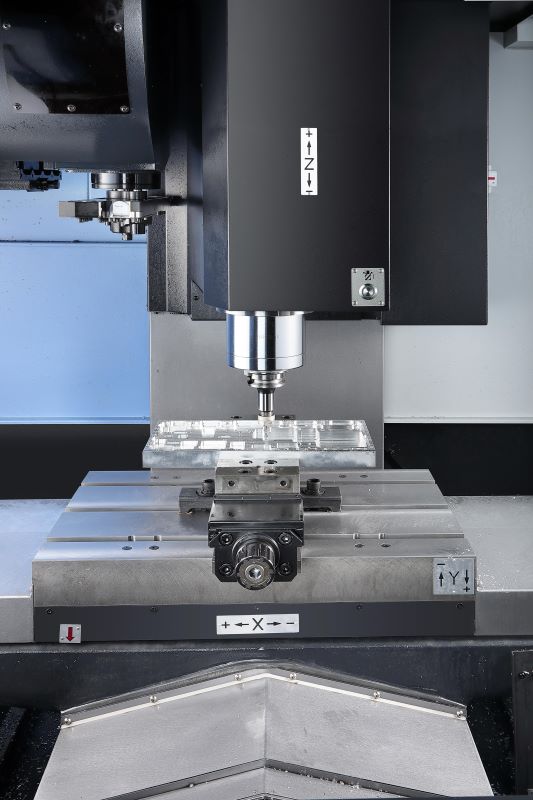

Apply high speed belt spindle.

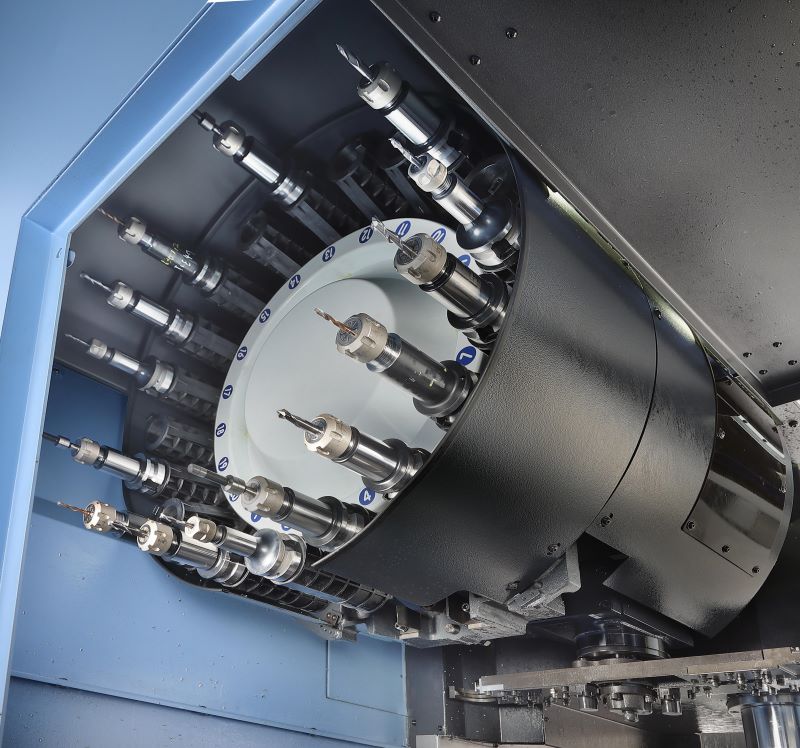

Two different type of magazines are available.(ARM, ARMLESS)
Maximizing cutting area & work load capacity.
|
Description
|
Unit
|

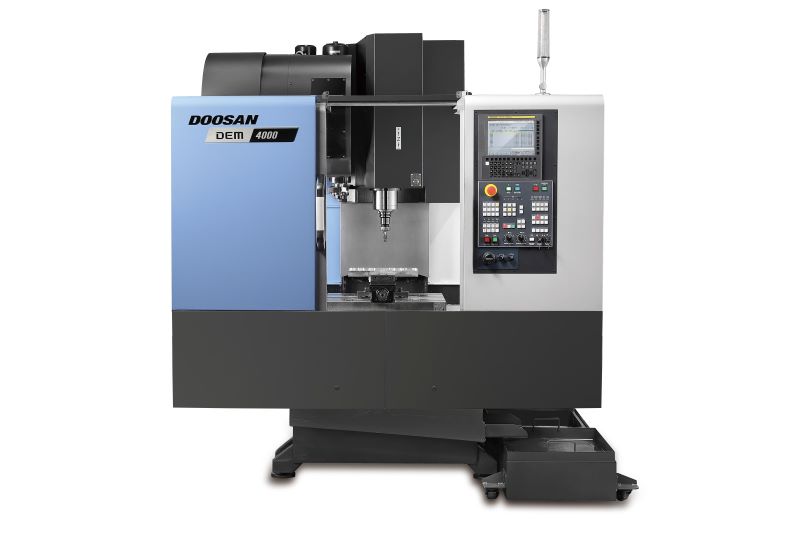

DEM 4000
|
|
Max. spindle speed
|
r/min
|
8000
|
|
Max. spindle power
|
kW (Hp)
|
7.5 (10.1)
|
|
Max. spindle torque
|
N·m (ft-lbs)
|
47.7 (35.2)
|
|
Tool shank type
|
|
ISO #40
|
|
Travel distance (X / Y / Z)
|
mm (inch)
|
550 / 400 / 450 (21.7/ 15.7 / 17.7)
|
|
Table size
|
mm (inch)
|
650 x 400 (25.6 x 15.7)
|
|
Table Loading Capacity
|
kg (lb)
|
400 (881.8)
|
|
Tool storage capacity
|
ea
|
20 {16}*
|
