High productivity& performance High speed universal head - 30000 r/min - 75kW (100.6 Hp)
Stable Structure & Larger capacity Integrated frame TABLE SIZE : 4000 x 1500 mm (157.5 x 59.1 inch)
Chip disposal Solution Coolant Tank : 1500 liter (396.3 galon)Paper filter : 30 micron SCRAPER TYPE CHIP CONVEYOR
- Width : 700 mm (27.6 inch)
- Max. Removal Capa.: 7000cm3/min (427.2 inch3/min)

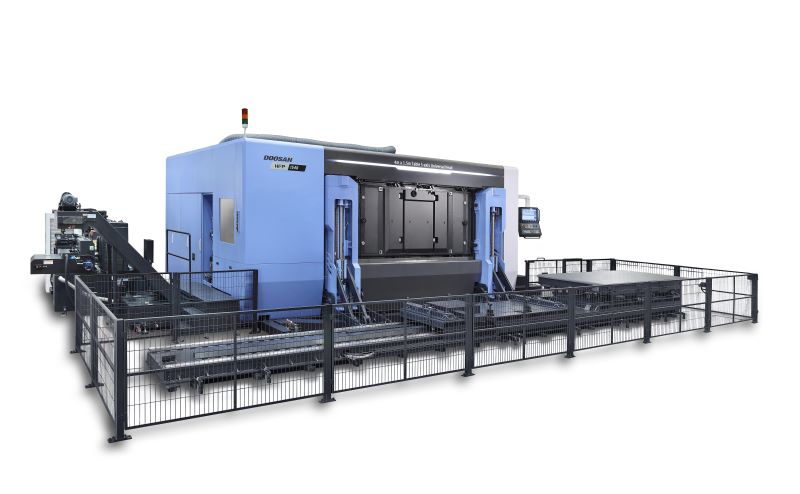

The integral structure maximized the stability of the machine.

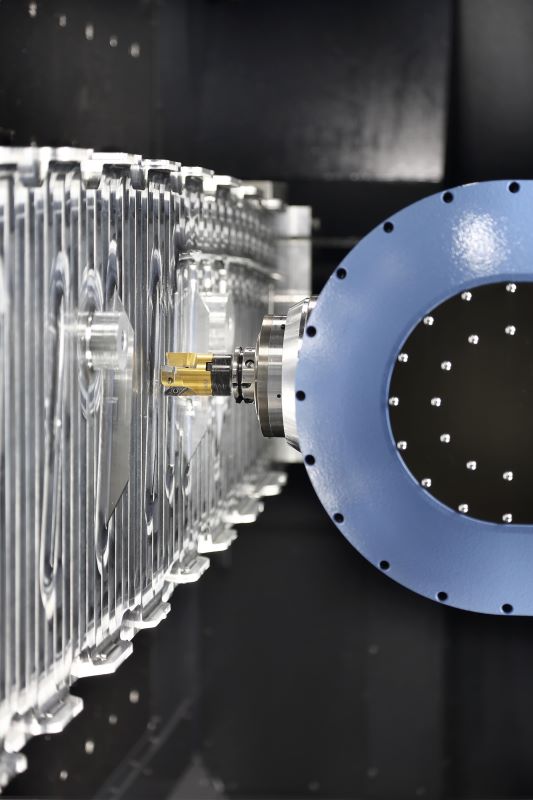

High speed universal head will provide great performance.

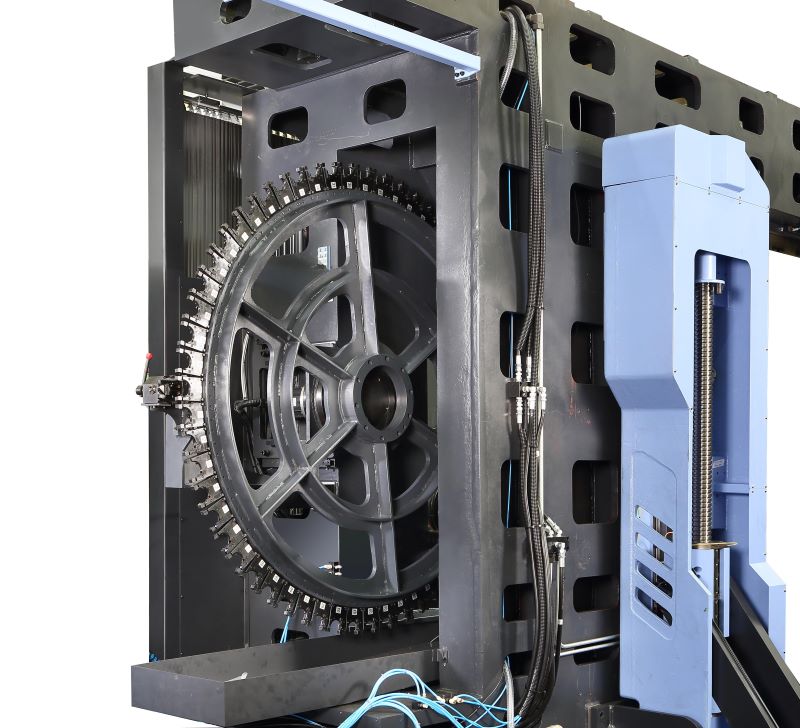

Servo magazine as standard for high productivity and accuracy.
Wide machining area with large tilting table.
High-speed conveyor maximized remove chips.
Various optional features are available to satisfy customers’ specific machining applications.
|
Description
|
Unit
|
HFP 1540
|
|
Travels
|
Travel distance
|
X axis
|
mm (inch)
|
4200 (165.4)
|
|
Y axis
|
mm (inch)
|
1600 (63.0)
|
|
Z axis
|
mm (inch)
|
550 (21.7)
|
|
Distance from spindle nose to table top
|
mm (inch)
|
50 ~ 600 (2.0 ~ 23.6)
|
|
Table
|
Table size
|
mm (inch)
|
4000 x 1500 (157.5 x 59.1)
|
|
TAP SIZE x PITCH
|
mm (inch)
|
M16 x 200 (M0.6 x 7.9)
|
|
Table loading capacity
|
kg (lb)
|
3000 (6613.8)
|
|
Spindle
|
Max. spindle speed
|
r/min
|
30000
|
|
Max. Spindle power
|
kW (Hp)
|
75 (100.6)
|
|
Max. spindle torque
|
N·m (ft-lbs)
|
48 (35.4)
|
|
A-axis angle
|
deg
|
± 105
|
|
C-axis angle
|
deg
|
± 360
|
|
Feedrates
|
Rapid traverse rate
|
X axis
|
m/min (ipm)
|
60 (2362.2)
|
|
Y axis
|
m/min (ipm)
|
40 (1574.8)
|
|
Z axis
|
m/min (ipm)
|
60 (2362.2)
|
|
Automatic Tool Changer
|
Type of tool shank
|
Tool shank
|
-
|
HSK-A63
|
|
Tool storage capa.
|
ea
|
60
|
|
Max. tool diameter
|
Continous
|
mm (inch)
|
80 (3.1)
|
|
Max. tool length
|
mm (inch)
|
300 (11.8)
|
|
Max. tool weight
|
kg (lb)
|
4.5 (9.9)
|
|
Tool change time (Tool-to-tool)
|
sec
|
6
|
|
Machine Dimensions
|
Height
|
mm (inch)
|
4205 (165.6)
|
|
Length
|
mm (inch)
|
7970 (313.8)
|
|
Width
|
mm (inch)
|
17705 (697.0)
|
|
Weight
|
kg (lb)
|
55000 (121252.5)
|
|
Contrel
|
NC system
|
-
|
SIEMENS S840D
|
