The linear motion guide ways and the high-speed servo motors enable fast axis movements, whichreduce machining time and non-cutting time,resulting in enhanced productivity.
Fast tool change time on a cam-type tool changer helps improve productivity.
The basic concept of the machine design enables fast machining performance, which ensures an improvement in productivity.
|
Features
|

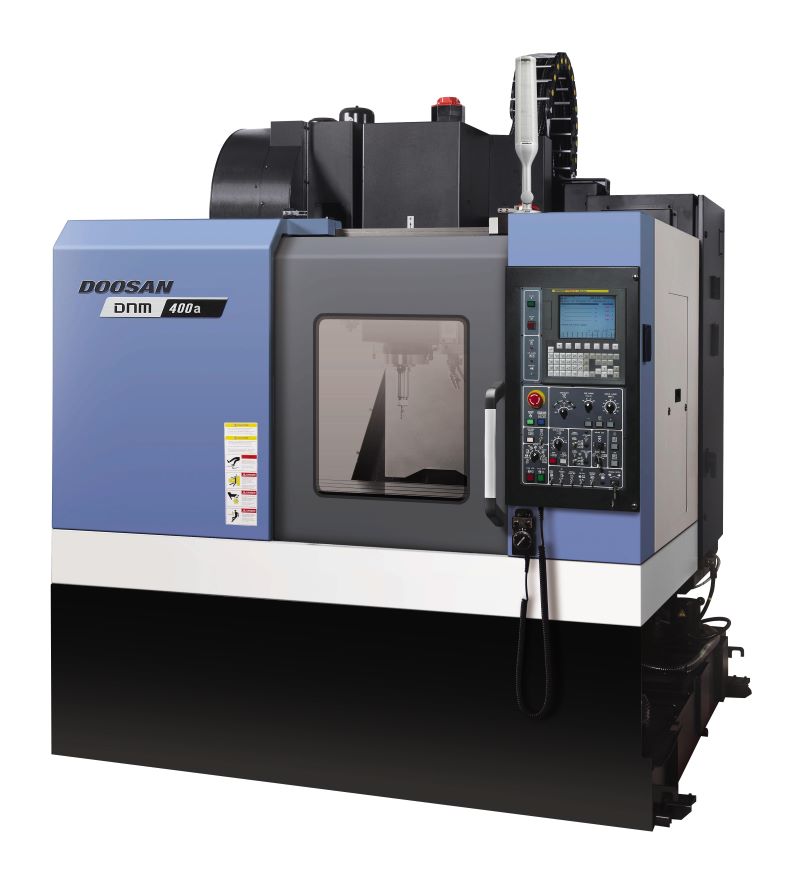

DNM 400a
|
|
Travel
|
X-axis
|
mm (inch)
|
635 (25.0)
|
|
Y-axis
|
mm (inch)
|
435 (17.1)
|
|
Z-axis
|
mm (inch)
|
510 (20.1)
|
|
Distance from Spindle to table surface
|
mm (inch)
|
150-660 (5.9-26.0)
|
|
Table
|
Table size
|
mm (inch)
|
790 x 435 (31.1 x 17.1)
|
|
Table loading capacity
|
kg (lb)
|
400 (881.8)
|
|
Table surface
|
4-125 x 18H8
|
|
Spindle
|
Max. spindle speed
|
r/min
|
8000
|
|
Spindle Taper
|
ISO #40 7/24 Taper
|
|
Max. Torque
|
N.m (ft.lb)
|
71 (695.8) / 15min
|
|
Feedrate
|
Rapid traverse rate (X / Y / Z)
|
m/min (ipm)
|
30 (1181.1)
|
|
Cutting feedrate
|
mm/min (ipm)
|
15000 (590.6)
|
|
Automatic tool changer
|
Type of tool shank
|
BT / CAT / DIN 40
|
|
Tool storage capacity
|
ea
|
20
|
|
Max. tool diameter
|
mm (inch)
|
Ø80 (3.2)
|
|
Max. tool diameter without adjacent tools
|
mm (inch)
|
Ø125 (4.9)
|
|
Max. tool length
|
mm (inch)
|
300 (11.8)
|
|
Max. tool weight
|
kg (lb)
|
8 (17.6)
|
|
Method of tool selection
|
memory random
|
|
Tool change time (tool-to-tool)
|
s
|
1.3
|
|
Tool change time (chip-to-chip)
|
s
|
3.7
|
|
Motor
|
Spindle motor
|
kW (Hp)
|
11 / 7.5 (14.8 / 10.1) [15min/Cont.]
|
|
Feed motor (X / Y / Z)
|
kW (Hp)
|
1.2 / 1.2 / 1.8 (1.6 / 1.6 / 2.4)
|
|
Power source
|
Electricpower supply (Rated capacity)
|
kVA
|
27.4
|
|
Compressed air supply
|
MPa (psi)
|
0.54 (78.3)
|
|
Tank capacity
|
Coolant tank capacity
|
L (gal)
|
300 (79.3)
|
|
Lubrication tank capacity
|
L (gal)
|
1.4 (0.37)
|
|
Machine size
|
Machine height
|
mm (inch)
|
2853 (112.3)
|
|
Machine dimension (L x W)
|
mm (inch)
|
2130 x 2060 (83.9 x 81.1)
|
|
Machine weight
|
kg (lb)
|
4000 (8818.5)
|
|
NC system
|
|
DOOSAN FANUC i series
|
