Stable bed and structure design Stable cutting based on anti-vibration materials and symmetrical gantry structure.

Stable cutting based on anti-vibration materials and symmetrical gantry structure. Outstanding productivity and cutting accuracy are delivered with 4 0,0 00 rpm spindles, linear motors, and direct- drive motors.

Heidenhain controller for maximum reliabilityThe adoption of Heidenhain controllers optimized for high-speed processing enhances machine reliability, visibility, and display applicability.

Stable cutting based on symmetrical gantry structure and anti-vibration materials (mineral casting).

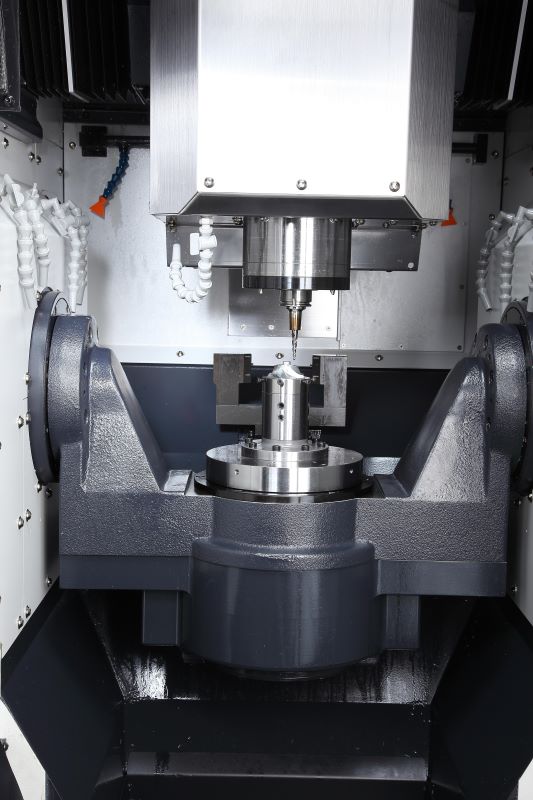

The linear axes and rotary axes deliver high speed and superior accuracy.

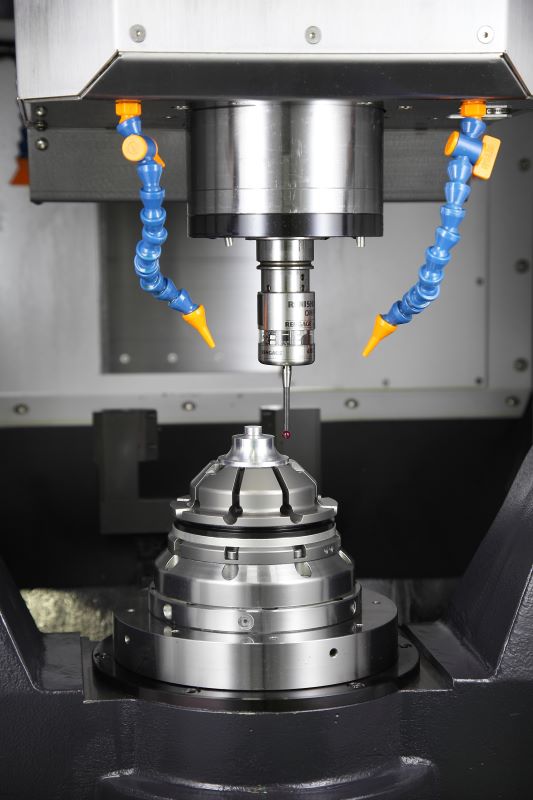

The spindle provides incomparably high productivity and machining accuracy.

One of the highest-speed spindles in its class, the ultra-high-speed enhances productivity and machining accuracy.

The machine’s structure has been simplified with the addition of a direct-drive motor, while the operator's convenience has been enhanced by manual magazine operation for tool storage.

Diverse optional features are available for customer-specific requirements.

Unlike ball-screw-type machines, a water chiller is used to cool down the linear motors and direct-drive motors. As such, the machine is sensitive to the control temperature of the chiller. Since the water chiller is controlled according to the ambient temperature, machine accuracy can be maintained and guaranteed in a constant temperature environment.

- Recommended operating conditions: Ambient temperature: 2 0±1.5°C, Temperature change: 0.4  °C/hr or less, ±1.5°C/24hr, Relative humidity: 20~80%
