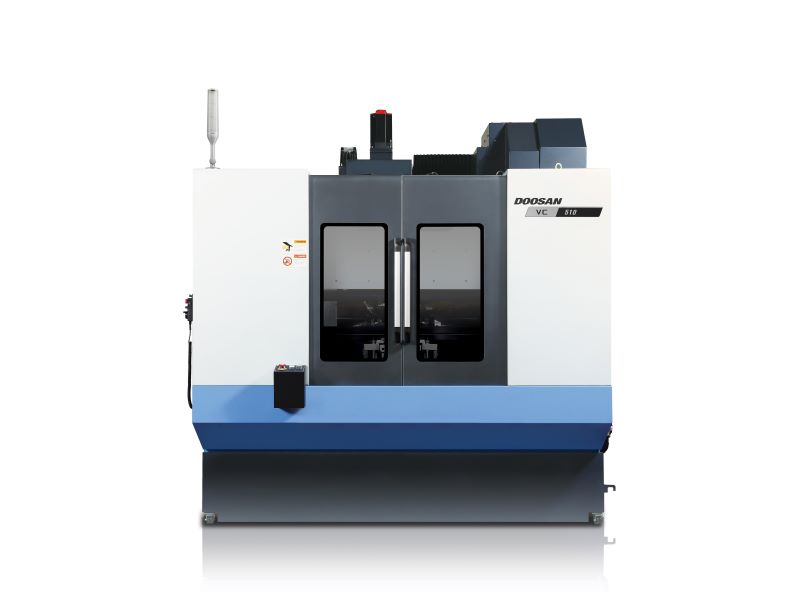

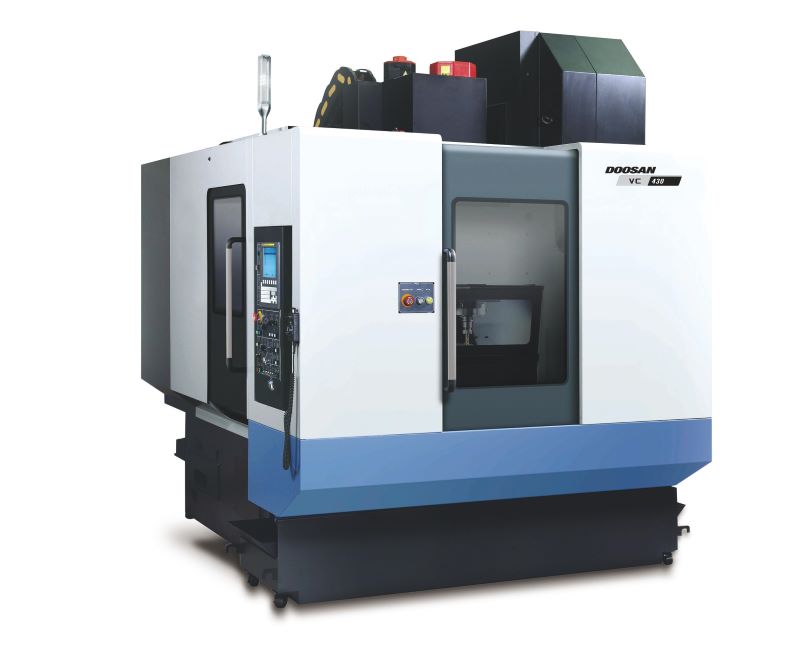

High-rigidity and Column-moving Structure High-rigidity cast structure is excellent for vibration absorption and minimizes deformation under heavy load. The column moving design guarantees high accuracy even after a prolonged period of operation and minimizes footprint.

High-speed Auto Pallet Changer The dual table equipped with standard auto-indexing pallet enables stable positioning and improved productivity with minimized idle time.

Convenience Diverse optional features are available for customized requirements.

The high rigidity machine structure maintains stable accuracy for long periods even during heavy duty cutting

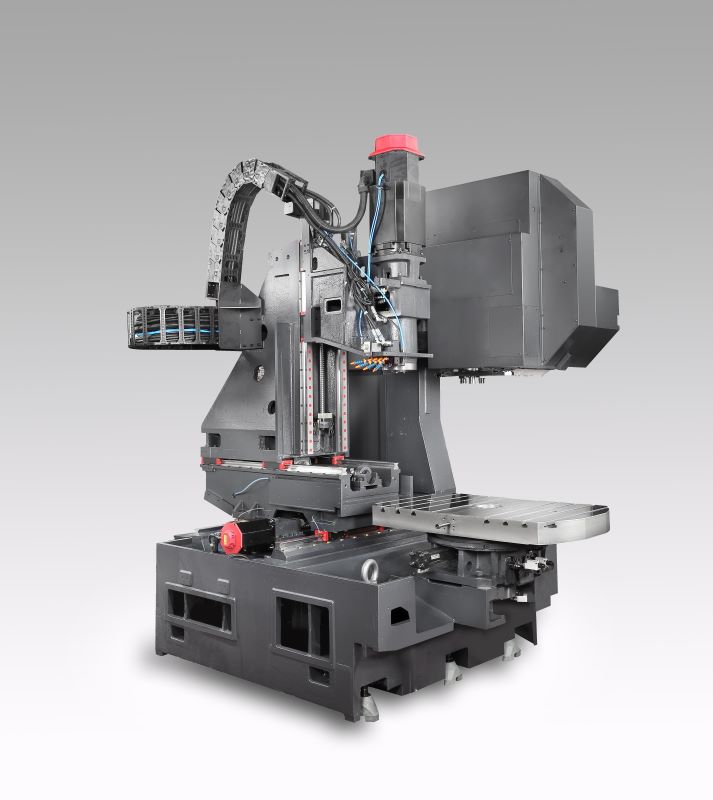

The moving column structure eliminates the root causes of fatigue and vibration caused by high frequency rapid movements over long periods of running and optimizes durability and accuracy. The machine footprint is also minimized.

Roller-type Linear Guideway and the highly rigid coupling are adopted for improving rigidity and accuracy of the linear feed system in X, Y and Z directions. The nut cooling system minimizes thermal displacement of the ball screw to satisfy the speed and the accuracy requirements.

The  drum-shape  tool  magazine  mounted  on  the  right  of  the  machine  is  driven  by  the  motor  and  the  cam  to guarantee high reliability. The magazine can be expanded to hold maximum 40 tools when optionally selected.

Rapid tool change at speed of 3 seconds for T-T-T to enhance productivity. The drum-shape ATC mounted on the right of the machine is interoperated with the CAM.

- The dual table with the standard automatic indexing pallet is of rack & pinion type and rotates through 180 degrees.

It features a 6 ton clamping force.

- The table with the horizontal machine bed directly connected allows stable positioning and minimal non-cutting

time to improve productivity.

-  Hydraulic lines for fixtures and electrical cables for rotary tables can be supplied via the central column of the indexing pallet, thus allowing pallet rotation whilst maintaining services connection.

The high speed spindle maintains accuracy during fine machining and also provides sufficient power for heavy duty cutting performance.

The high-speed spindle of 10,000 (12,000) rpm is supported high-precision bearing for ensuring stable accuracy under high speed cutting operation. In addition, a spindle motor of higher power is mounted for heavy duty cutting.

Spindle Head Cooling System The spindle cooling system maintains temperature relative to the ambient value and circulates cooling oil around the bearings to reduce thermal growth due to high speed running over long periods.

Dual Contact Spindle Tool rigidity is enhanced by the firm clamping of the spindle. Tool lifecycle and cut-surface roughness have been improved as a result of the reduced vibration realized by the dual contact spindle.

Delivers excellent performance under diverse machining conditions.

Diverse optional features are available to meet specific customer requirements.

A wide range of solutions are available that can be optimized to suit customers specific need.

Coolant supply around the spindle nose is standard equipment. The coolant tank is separated from the machine structure to prevent heat transfer. Through spindle coolant (TSC) is an option.

Heat  is  transferred  from  the  coolant  during  cutting  to  the  machine  structure  and  can  cause  thermal deformation. To  maintain  optimum  machining  accuracy,  a  coolant chiller  is recommended  which  recirculates the coolant and controls its temperature. This significantly improves overall precision.

Operator convenience has been significantly enhanced with a new operating panel.

The operation panel is redesigned and integrated for better usability. Additionally, custom ized function switches can be attached to maximize operation convenience.
