Servo-type APC (Auto Pallet Changer) and ATC (Auto Tool Changer) as standard features to achieve even higher productivity and reliabilityServo-driven APC reduces pallet change time by about 30%. Servo-driven ATC incorporating 20 tools as standard feature reduces tool change time by up to 23%.

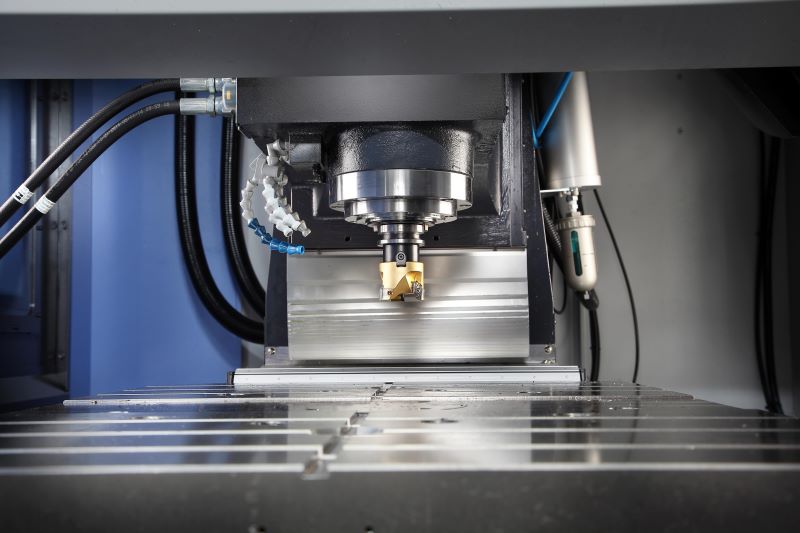

Newly-designed direct coupled spindle with improved productivity and heavy duty cutting performance The spindle design has been optimized by reducing acceleration and deceleration times even higher productivity. Adoption of dual contact spindle as standard feature improves heavy duty machining performance.

Various user convenience features Auxiliary chip box (optional) effectively filters fine aluminum chips.

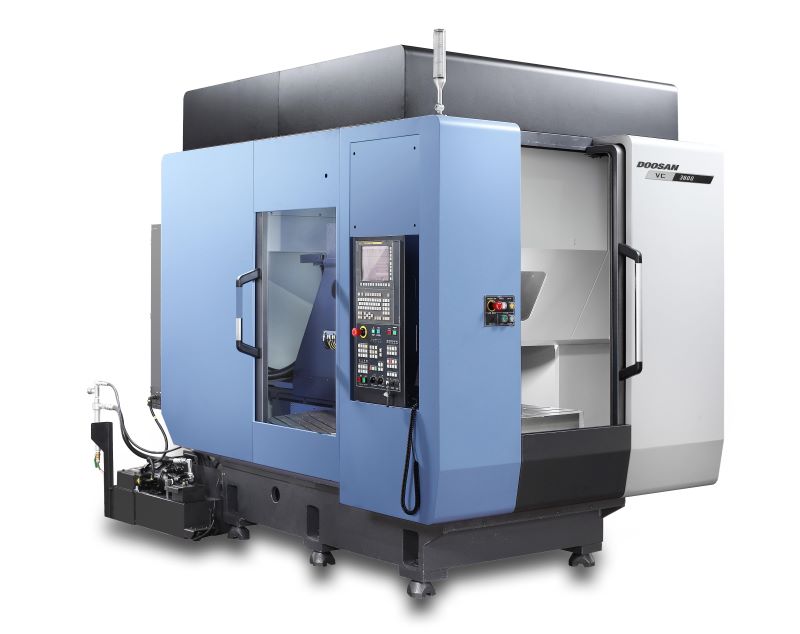

The VC 3600, a Tool Taper ISO #40 Class DualPallet Vertical machining center , is equipped with a highly reliable servo unit and a new frame, and offers superior productivity and reliability.

The machine’s structure has been improved and optimized by CAE analysis to enhance rigidity and thereby ensure stable and accurate machining over long periods.

Environmentally friendly grease lubrication is adopted as standard for all of the axis feed system, and roller-type LM guides are provided to enhance the rigidity.

The servo driven system has been adopted to further reduce non cutting time (pallet change time), thereby enhancing productivity and reliability.

To enhance precision and powerful machining capability, direct coupled and dual contact spindle are provided as standard features. Also, spindle maximum power and torque characteristic is upgraded compare to previous model.

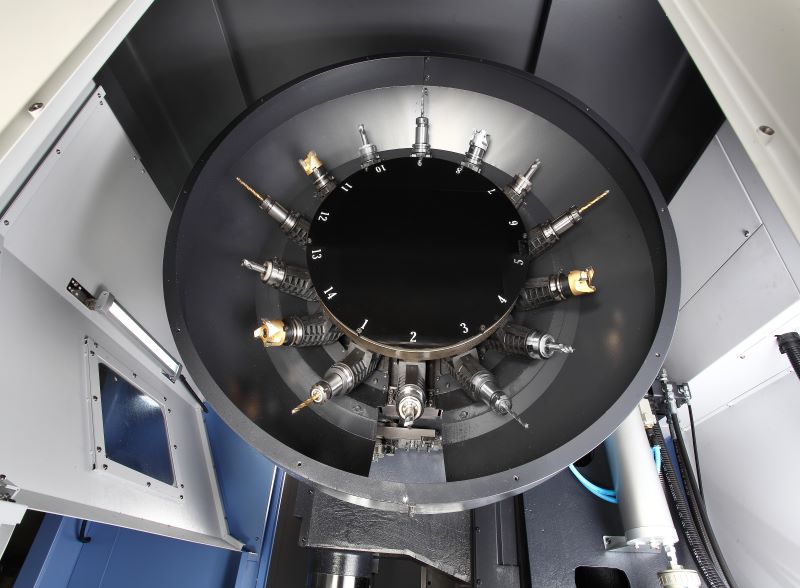

The servo-type ATC improves reliability and reduces idle time.

The high power and torque characteristics of the spindle motor provides superior milling and tapping performance in steel at low rpm, while providing effective high speed machining for aluminum workpieces.

Various optional features are available for customer-specific work environments.

FANUC CNC has been optimized for DOOSAN's machine tools to maximize productivity.

Issuing an M-code corresponding to the work weight can change pallets at a speed appropriate for the weight.
