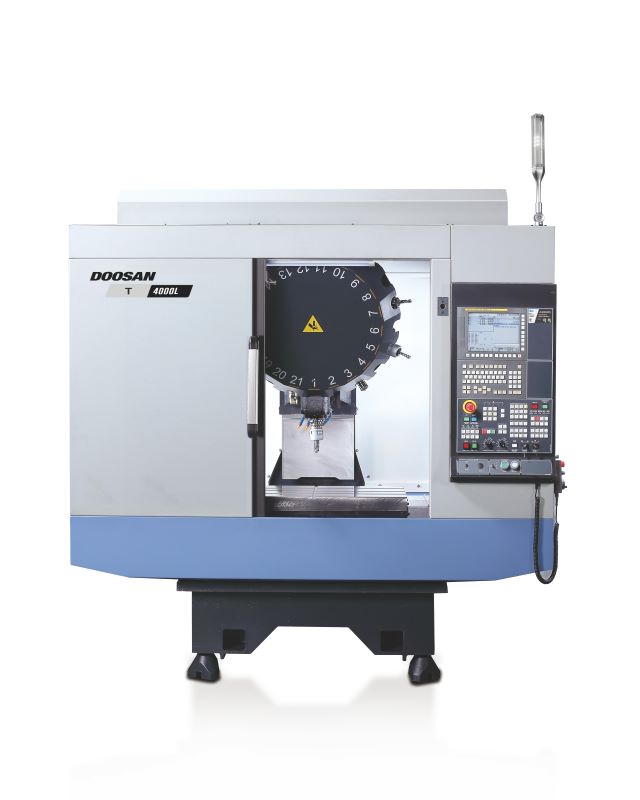

T 4000 HIGH-SPEED,HIGH-PRODUCTIVITY TAPPING CENTER

#Item : T 4000

Price : N/A

Doosan’s T Series is a high-speed tapping center that delivers excellent vastly and productivity. The T Series offers

even faster acceleration and greater responsiveness, as well as a greatly improved Z axis for increased productivity.

Various accessories and peripheral devices are provided as standard feature, creating added value for users.

Product Detail

Features
Speciﬁcations
Image Report
Options
Video clip

H igh Re l ia bi l i ty, Fre e Of D e f e c ts The new servo-driven T Series, equipped with 21 tools as a standard, offers the highest level of reliability due to improved acceleration and deceleration performance resulting from the optimized spindle length.

NC System with Wide Range of Speciﬁcations f o r E xc el l e nt Perf o rman ce Fanuc NC eliminate idle time and maximize system productivity.

En ha n ce d S t a b il i t y a n d Use r Co nven ien c e User convenience has been improved by reducing the machine and table heights and optimizing the center of gravity.

Doosan's new tapping center offers improved quality and increased productivity.The new tapping center delivers best in class productivity by providing superior machining capabilities, a higher feed rate, and a faster tool change time when machining components for the Automotive and IT industries.

Reliability Enhanced with a High-rigidity Structural Design Improved structural design and increased rigidity, realized through FEM analysis, guarantees a stable machining platform.

The machine's compact design delivers greater user convenience and requires minimal ﬂoor space.

The newly designed, direct-coupled spindle offers greater productivity coupled with excellent reliability and rapid acceleration/ deceleration.

The spindle length has been minimized to reduce the time required for acceleration/ deceleration and idle time, resulting in greater productivity and reduced vibration and noise.

Thermal error of the spindle is calculated with the spindle temperature feedback and automatically compensated to maintain the highest level of work accuracy.

Power and torque of the spindle motor have increased beyond the levels of previous models to deliver more powerful machining.

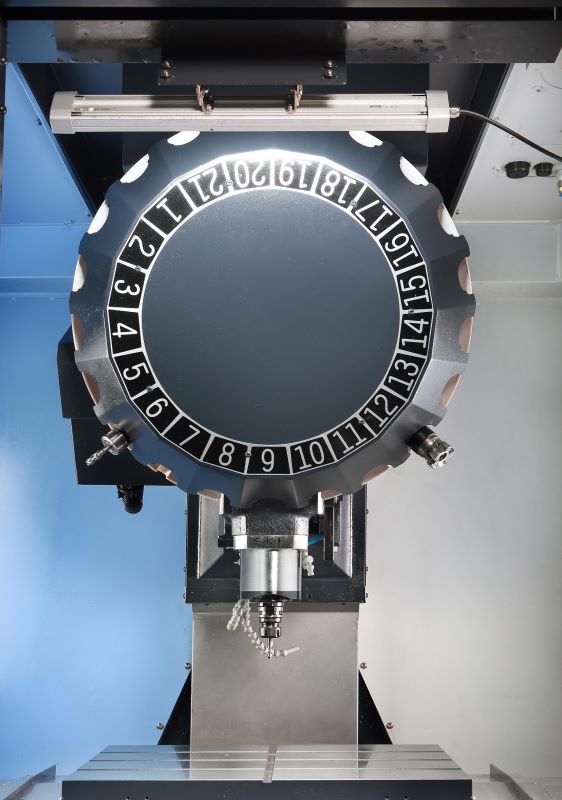

Machine reliability has been improved with the new servo magazine, while productivity has been enhanced by reducing the tool change time.

The servo-motor driven position control system has passed the two-million-cycles test, proving its excellent reliability and durability.

Multi-functionality including end milling, face milling, drilling, tapping, etc., enhanced machining performance and minimized work setting.

Diverse optional devices and features available to meet specific customer requirements.

Item			Unit	T 4000	T 4000L
				F-0i	F-0i		F-31i
Travel	Travel distance	X-axis	mm (inch)	520 (20.5)	700 (27.6)
		Y-axis	mm (inch)	400 (15.7)
		Z-axis	mm (inch)	350 (13.8)
	Distance from spindle center to table top		mm (inch)	150 ~ 500 (5.9 ~ 19.7)
	Distance from spindle center to column		mm (inch)	443 (17.4)
Feed rate	Rapid Transfer Rate	X-axis	m/min	56	56		48
		Y-axis	m/min	56	56		48
		Z-axis	m/min	56	56		48
	Max. cutting feedrate		m/min	28	28		24

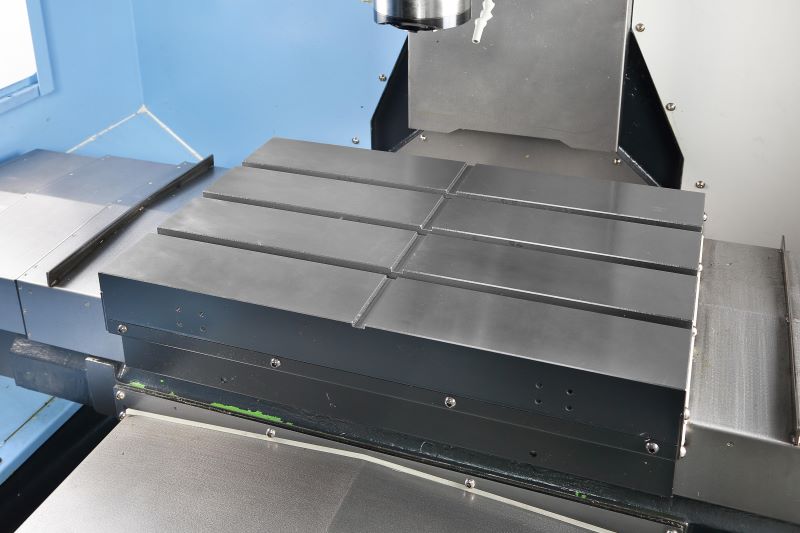

Table	Table size		mm (inch)	650 X 400 (25.6 X 15.7)	850 X 400 (33.5 X 15.7)
	Loading capacity		kg (lb)	300 (661.4)
	Table type			T-SLOT (3-100 X 14H8)
Spindle	Max. Spindle Speed		r/min	12000 {18000}	12000		18000 {12000}
	Spindle taper			ISO #30, 7/24 TAPER
	Max. spindle torque		N·m (ft-lbs)	82.7 (182.3) (S3 15%) {11.8 (26.0) (5 min)}		82.7 (182.3) (S3 15%)	11.8 (26.0) (5 min) {70 (154.3) (S3 15%)}
ATC	Tool shank type			MAS403 BT 30 / MAS403 P30T-1 45deg
	Tool storage capacity		ea	21
	Max. tool diameter	Continuous	mm (inch)	80 (3.1)
		Near port empty	mm (inch)	150 (5.9)
	Max. tool length		mm (inch)	240 (9.4) (Tool diameter ≦ 40 (1.6))
	Max. tool weight		kg (lb)	2.8 (6.2)
	Max. tool moment		N·m (ft-lbs)	1.47 (1.1)
	Max. magazine weight		kg (lb)	33 (72.8)
	Max. magazine eccentric load weight		kg (lb)	21 (46.3)
	Tool selection			FIXED ADDRESS
	Tool change time (tool to tool)		s	1.3	1.3
	Tool change time (chip-to-chip)		s	1.8	1.8*
Motor	Spindle motor power		kW (Hp)	13 (17.4) (S3 15%) / 7.5 (10.1) (S3 25%) / 5.5 (7.4) (30 min) / 3.7 (5.0) (Cont.) {3.7 (5.0) (5 min) / 2.2 (3.0) (10 min) / 1.1 (1.5) (Cont.)}	13 (17.4) (S3 15%) / 7.5 (10.1) (S3 25%) / 5.5 (7.4) (30min.) / 3.7 (5.0) (Cont.)		3.7 (5.0) (5 min) / 2.2 (3.0) (10 min) / 1.1 (Cont.) {11 (1.5) (S3 15%) / 7.5 (10.1) (S3 25%) / 5.5 (7.4) (30 min) / 3.7 (5.0) (Cont.)}
	Coolant pump motor power		kW (Hp)	FLOOD : 0.4 (0.5) BASE COOLANT : 0.9 (1.2)
Power Source	Electric power		kVA	19 {15.7}	19		17.5 {20.8}
	Power Source		Mpa	0.54
Dimensions	Height		mm (inch)	2380 (93.7)
	Length		mm (inch)	2682 (105.6)
	Width		mm (inch)	1620 (63.8)	2050 (80.7)
	Weight		kg (lb)	2800 (6172.9)	3000 (6613.8)
