Provides high rigidity and stable structure by direct axis connection.
We provide stable machining performance with high speed direct and built-in spindle.
Servo magazine as standard for high productivity and accuracy.
Various table specifications from standard specification to DD and turning function
|
Description
|
Unit
|

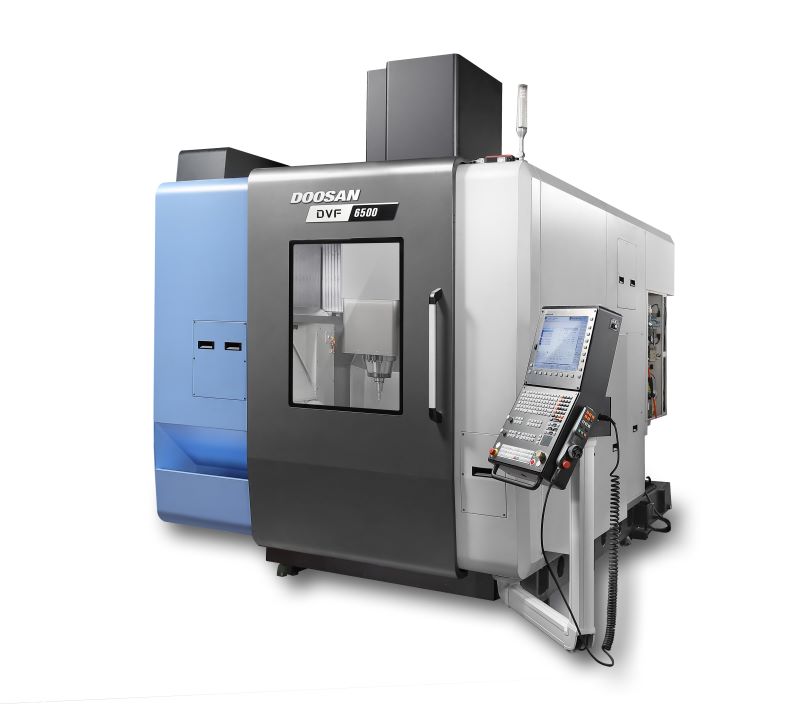

DVF 6500
|
DVF 8000
|
DVF 8000T
|
|
Travel
|
Travel distance
|
X-axis
|
mm (inch)
|
750 (29.5)
|
1000 (39.4)
|
|
Y-axis
|
mm (inch)
|
785 (30.9)
|
900 (35.4)
|
|
Z-axis
|
mm (inch)
|
600 (23.6)
|
685 (27.0)
|
|
A-axis
|
deg
|
±120
|
±120
|
|
C-axis
|
deg
|
360
|
360
|
|
Feedrate
|
Rapid traverse
|
X-axis
|
m/min (ipm)
|
45 (1771.7)
|
|
Y-axis
|
m/min (ipm)
|
45 (1771.7)
|
|
Z-axis
|
m/min (ipm)
|
45 (1771.7)
|
|
A-axis
|
r/min
|
25
|
|
C-axis
|
r/min
|
50{DD : 80}
|
60
|
600
|
|
Spindle
|
Max. Spindle speed
|
r/min
|
12000 {18000}*
|
18000
|
|
Max. Spindle power
|
kW (Hp)
|
H/H : 30 {30}* (40.2 {40.2})
FANUC : 22 {22}* (29.5 {29.5})
|
H/H : 30
(40.2)
|
|
Max. Spindle Torque
|
N·m (ft-lbs)
|
H/H : 155 {155}* (114.4 {114.4})
FANUC : 204 {118}* (150.6 {87.1})
|
H/H : 155
(114.4)
|
|
Tool shank
|
-
|
ISO #40
|
HSK T63
|
|
Table
|
Table size
|
mm (inch)
|
Ø650 x 600
(Ø25.6 x 23.6)
|
Ø800 x 680
(Ø31.5 x 26.8)
|
Ø800 (Ø31.5)
|
|
Max. Work size
|
mm (inch)
|
Ø840 x 500
(Ø33.1 x 23.6)
|
Ø1000 x 590
(Ø39.4 x 23.2)
|
|
Max. Work load
|
kg (lb)
|
600
(1322.8)
|
1400
(3086.5)
|
700
(1543.2)
|
|
ATC
|
Tool capacity
|
ea
|
40 {60, 90, 120}*
|
|
Machine Dimensions
|
Length x Width
|
mm (inch)
|
3700 x 2450
(145.7 x 96.5 )
|
4097 x 2950
(161.3 x 116.1)
|
| |
|
|
|
|
|
|
|
|
|
