Excellent Rigidity and Precision Designed with FEM analysis to provide high stability and productivity.Precision machining capability is further improved due to minimal thermal error design.
Provide a Tool Solution Applicable for a Diversity of Machining Processes Suitable for processing small parts having diameters between Ø20 mm (Ø0.8 inch) ~ Ø38 mm (Ø1.5 inch).Up to 5 cross tools can be used for highest efficiency in milling and other special machining processes.
User-Friendly Software for Easy Set-up and Operation Doosan’s built-in software provides various user convenience functions for easy operation and control. Productivity is further improved by the reduced time of setup and operation.

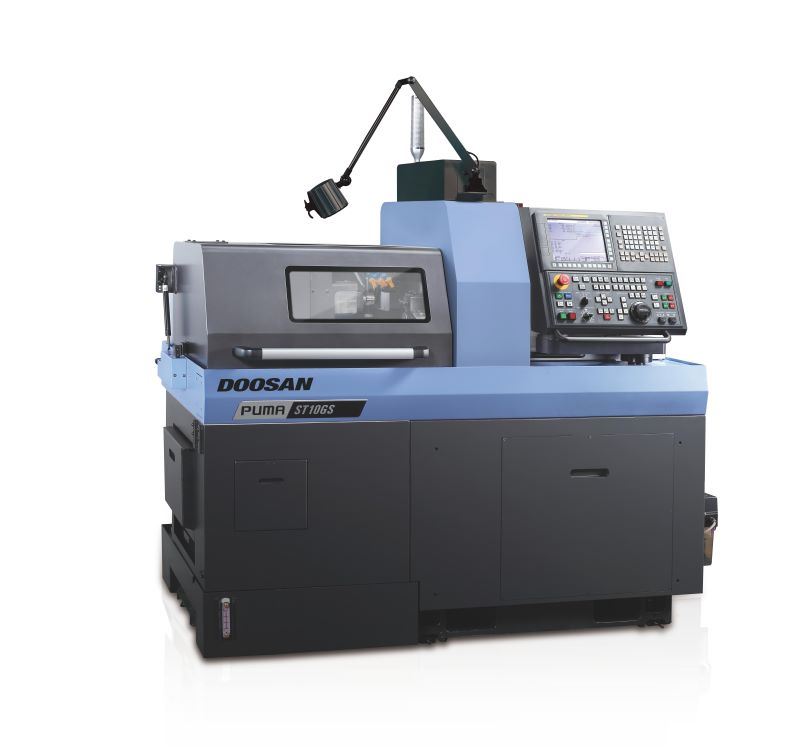

PUMA ST10GS PUMA ST10GS excellent for continuous precising is suitable for processing small parts having diameters between Ø3 (Ø0.1)~Ø8 mm (Ø0.3 inch).
|
Description
|
Unit
|
PUMA ST10GS
|
PUMA ST20GS
|
PUMA ST26GS
|
PUMA ST32GS
|
PUMA ST35GS
|
|
Machining Capacity
|
Max. machining diameter
|
mm (inch)
|
Ø10 (Ø0.4)
|
Ø20 (Ø0.8)
|
Ø26 (Ø1.0)
|
Ø32 (Ø1.3)
|
Ø35 (Ø38) (Ø1.4 ( Ø1.5))
|
|
Max. machining length
|
mm (inch)
|
120
(4.7)
|
200
(7.9)
|
200
(7.9)
|
300
(11.8)
|
300
(11.8)
|
|
Max. front drilling / tap
|
mm (inch)
|
Ø7 / M6 (Ø0.3 / 0.2)
|
Ø10 / M8 (Ø0.4 / M0.3)
|
Ø10 / M8 (Ø0.4 / M0.3)
|
Ø13 / M12 (Ø0.5 / M0.5)
|
Ø13 / M12 (Ø0.5 / M0.5)
|
|
Max. cross drill / tap
|
mm (inch)
|
Ø5 /M4 (Ø0.2 /M0.2)
|
Ø8 /M6 (Ø0.3 /M0.2)
|
Ø8 /M6 (Ø0.3 /M0.2)
|
Ø8 /M6 (Ø0.3 /M0.2)
|
Ø8 /M6 (Ø0.3 /M0.2)
|
|
Tool post
|
No. Mountable tools (Max)
|
ea
|
22
|
25 (30)
|
22 (27)
|
24 (29)
|
21 (26)
|
|
Front machining
|
Turning tool
|
ea
|
6 (10 x10 x110)
|
6 (12x12 x120)
|
5 (16x16 x120)
|
6 (16x16 x120)
|
5 (16x16 x120)
|
|
Sleeve holder
|
ea
|
4(ERM11)
|
4 (ER16M)
|
4 (ER16)
|
4 (ER20M)
|
4 (ER20M)
|
|
Cross tool
|
ea
|
4
|
5 (ER16)
|
5 (ER16)
|
4 (ER16)
|
4 (ER16)
|
|
Max. rotaty tool speed
|
r/min
|
8000
|
8000
|
8000
|
8000
|
8000
|
|
Back machining
|
Number of mountable tool
|
ea
|
fixed 2 + rotation 2
|
|
Additional fixed type tool
|
ea
|
-
|
2
|
2
|
2
|
2
|
|
Max. rotaty tool speed
|
r/min
|
8000
|
6000
|
6000
|
8000
|
8000
|
|
Spindle
|
Main spindle
|
Max. spindle speed
|
r/min
|
12000
|
10000
|
8000
|
8000
|
8000
|
|
Max. spindle power (30min/cont.)
|
kW (Hp)
|
3.7/2.2 (5.0/3.0)
|
3.7/2.2 (5.0/3.0)
|
5.5/2.2 (7.4/3.0)
|
7.5/5.5 (10.1/7.4)
|
7.5/5.5 (10.1/7.4)
|
|
Sub spindle
|
Max. spindle speed
|
r/min
|
10000
|
8000
|
8000
|
8000
|
8000
|
|
Max. spindle power (30min/cont.)
|
kW (Hp)
|
1.1/0.55 (1.5/0.7)
|
3.7/2.2 (5.0/3.0)
|
3.7/2.2 (5.0/3.0)
|
3.7/2.2 (5.0/3.0)
|
3.7/2.2 (5.0/3.0)
|
|
C-axis minimum indixing increment
|
|
0.001
|
|
Travel
|
Rapid traverse rate
|
m/min (ipm)
|
35
(1378.0)
|
32
(1259.8)
|
32
(1259.8)
|
32
(1259.8)
|
32
(1259.8)
|
|
X1, X2, Z1, Z2, Y motor power
|
kW (Hp)
|
0.75
(1.0)
|
0.5
(0.7)
|
0.75
(1.0)
|
1.0
(1.3)
|
1.0
(1.3)
|
|
Chuck
/ Guide bush
|
Main/sub spindle
|
|
TF15
|
TF25
|
TF32
|
TF37
|
TF40
|
|
Guide bush
|
|
TD10
|
TD25NS
|
CD25
|
TD32S
|
TD35
|
|
Power source
|
Power consumption
|
Kva
|
11
|
12
|
22
|
22
|
22
|
|
Control
|
CNC system
|
|
DOOSAN FANUC i
|
