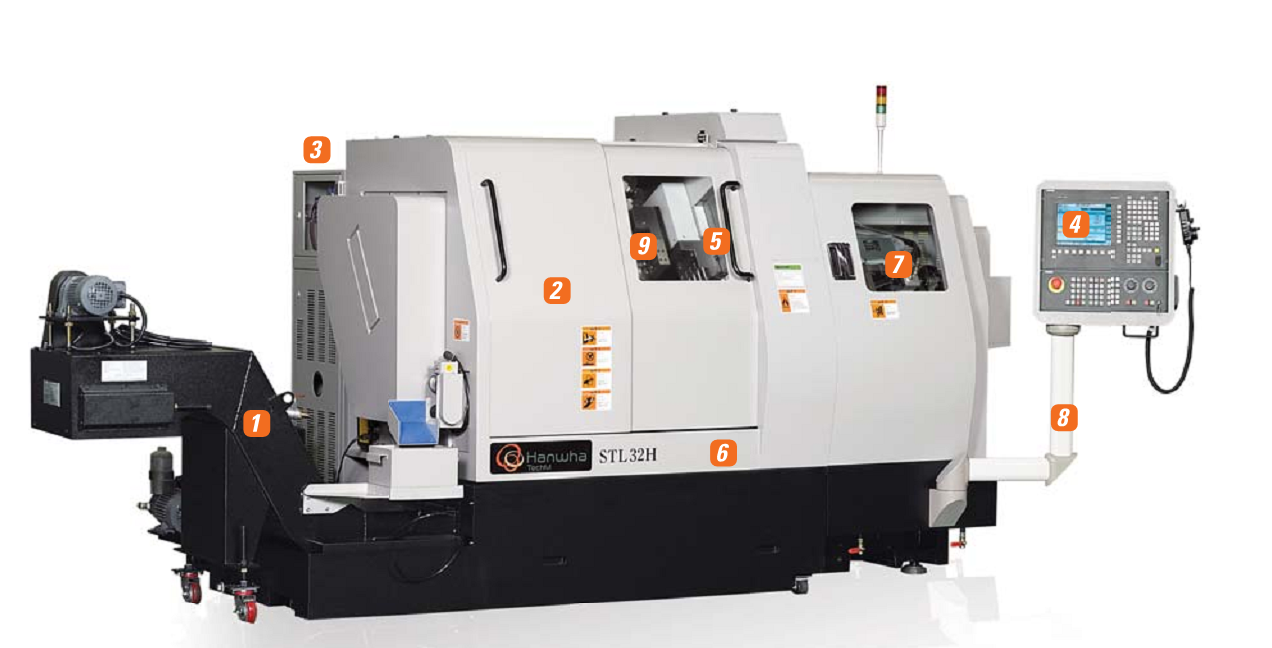

#Item : HANWHA STL32H

Price : N/A

Separate cooling oil tank & chip conveyor

Powerful built-in motor(8.0kW) on Main & Sub spindle

Precaution of electronic turbulence due to separated

controller & electronic part

Remote diagnosis function & system based on WINDOWS XP

Modular type cross drilling spindle enables to exchange tools

60° slant bed structure makes better chip

discharge & cooling oil low

Realizing to minimize the heat deformation by the forced cooling

Free position OP & pendant MPG as standard

Modular type back working tools and 90° angle holder(opt)

Product Detail

MODEL		STL32H/35H/38H	STL32H(Y3)/35H(Y3)/38H(Y3)
NC		SEIMENS840D	SEIMENS840D
Max Turning Ø in Main		Ø32/35/38 mm	Ø32/35/38 mm
Max Chucking Ø in Sub		Ø32/35/35 mm	Ø32/35/35 mm
(Z1) / (Y1) / (X1) Stroke		320 / 295 / 60 mm	320 / 295 / 60 mm
(Z2) / (Y2) / (X2) Stroke		120 / 100 / 115mm	120 / 100 / 115 mm
(Z3) / (Y3) / (X3) Stroke)		320 / NA / 300 mm	320 / 40 / 300 mm
Tool( ) Option	OD TOOL	5 EA [ㅁ16]	5 EA [ㅁ16]
	CROSS TOOL	4 EA	4 EA
	BACK TO OL	4 EA [4 Fixed]	8 EA [4 Fixed , 4 Driven]
	TURRET	10 stations [6 Fixed ,4 Driven]	10 stations [6 Fixed , 4 Driven]
Main Spindle Motor	rpm	8,000 rpm	8,000 rpm
Main Spindle Motor	power	8 Kw	8 Kw
Sub Spindle Motor	rpm	7,000 rpm	7,000 rpm
Sub Spindle Motor	power	8 Kw	8 Kw
Guide Bush Motor	rpm	8,000 rpm	8,000 rpm
Guide Bush Motor	power	3.6 Kw	3.6 Kw
Cross Tool Motor	rpm	6,000 rpm	6,000 rpm
Cross Tool Motor	power	1.6 Kw	1.6 Kw
Back Tool Motor	rpm		6,000 rpm
Back Tool Motor	power		1.6 Kw
Machine Weight		4,400 / 4,500 / 4,600 Kg	4,500 / 4,600 / 4,700 Kg
Power Consumption (Cable Size)		40 KVA (Min 6 SQ)	40 KVA (Min 6 SQ)
Air Flow Rate		20~30 Liter / Min	20~30 Liter / Min
