Multi-positional operating panel for eicient operability in tooling & programming
Compact design to optimize the usage of space(2,070 x 1,140 x 1,715)
Rounded and elegant cover design

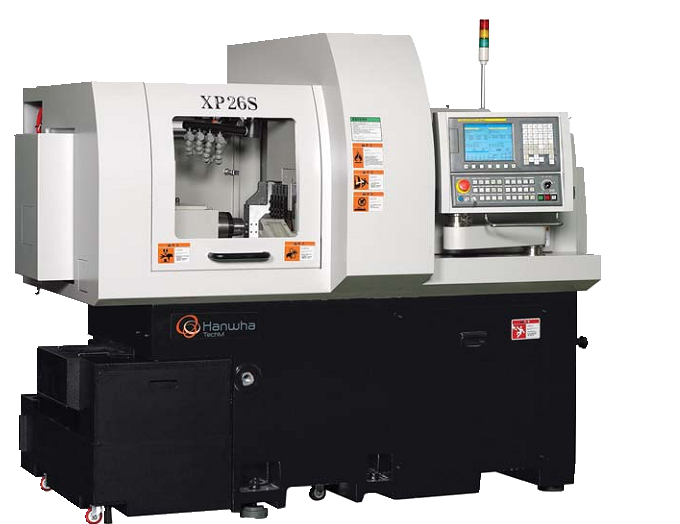

MODEL
XP20S
XP26S
XP32S
NC
HANWHA FANUC i
Max Turning Ø in Main
Ø20 mm
Ø26 mm
Ø32 mm
Max Chucking Ø in Sub
Number of Tools
OD TOOL
6 EA [ㅁ12]
5 EA [ㅁ16]
CROSS TOOL
4 EA [ER16]
FRONT TOOL
Front Tool
Max Drilling Ø
Ø10 mm
Max Tapping M
M8
Cross Tool
M6 [ER16]
M8 [ER16]
Max Slotting
Width 1.5 mm X
Depth 4.0 mm
Main Spindle Motor
rpm
10,000 rpm
8,000 rpm
power
2.2/3.7 Kw
5.5/7.5 Kw
Sub Spindle Motor
0.55/1.1 Kw
1.5/2.2 Kw
Cross Tool Motor
6,000 rpm
1Kw
Coolant Tank (Liter)
160 Liter
Machine Weight
2,300 Kg
2,450Kg
2,500 Kg
Power Consumption (Cable Size)
15 KVA (Min 4 SQ)
20 KVA (Min 6 SQ)
Air Flow Rate
120~150 Liter / Min
