Maxmized convenience for end-user
Design for easy tooling set-up
Cover design of minimized coolant leakage
One body control box considering space utilization
Easy chip drop and stream ofcoolant
Free position typed Operation panel for convenient work
3 open doors on main spindle for maintenance and repair
Comportable operation and tooling
Safe working environment
Extreme customer satisfaction
|
MODEL
|
XP12
|

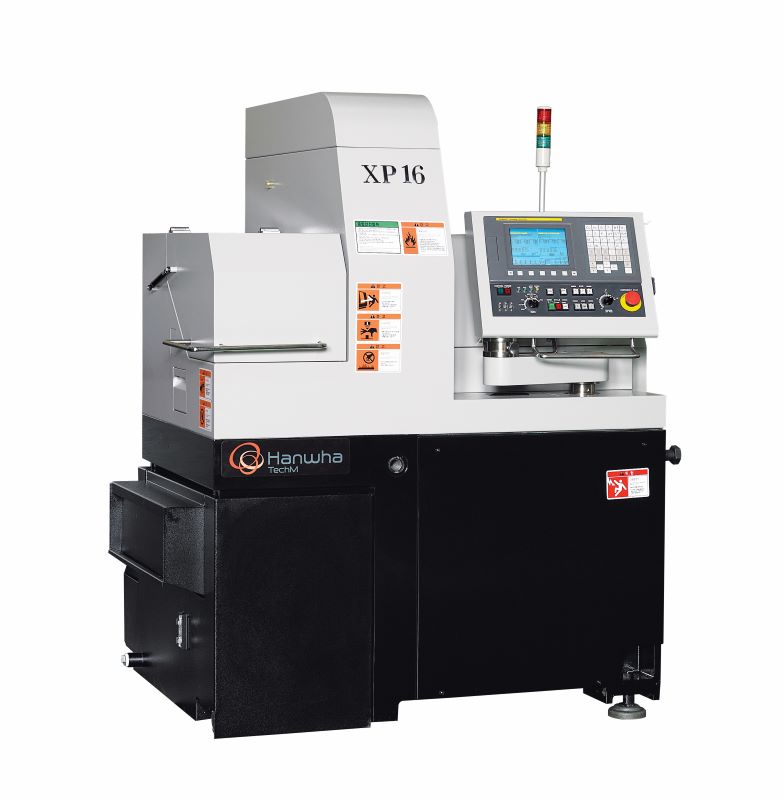

XP16
|
|
NC
|
|
HANWHA FANUC i/Mitsubishi(M70)
|
HANWHA FANUC i
|
|
Max Turning Ø in Main
|
|
Ø12mm
|
Ø16mm
|
|
Number of Tools
|
OD TOOL
|
6 EA [ㅁ12]
|
6 EA [ㅁ12]
|
|
CROSS TOOL
|
3 EA [ER11: 2EA, ER16: 1EA]
|
3 EA [ER11: 2EA, ER16: 1EA]
|
|
FRONT TOOL
|
3 EA [ER11: 3EA]
|
3 EA [ER11: 3EA]
|
|
Front Tool
|
Max Drilling Ø
|
Ø7mm
|
Ø10 mm
|
|
Max Tapping M
|
M6
|
M8
|
|
Cross Tool
|
Max Drilling Ø
|
Ø5mm
|
Ø5mm
|
|
Max Tapping M
|
M4 [ER11]
|
M4 [ER11]
|
|
Max Slotting
|
Width 1.5 mm X Depth 2.0 mm
|
Width 1.5 mm X Depth 2.0 mm
|
|
Main Spindle Motor
|
rpm
|
10,000 (Fix GB: 12,000) rpm
|
10,000 (Fix GB: 12,000) rpm
|
|
power
|
2.2/3.7 Kw
|
1.5/5.5 Kw
|
|
Cross Tool Motor
|
rpm
|
5,000 rpm
|
5,000 rpm
|
|
power
|
0.5 Kw
|
0.5 Kw
|
|
Coolant Tank (Liter)
|
100 Liter
|
100 Liter
|
|
Machine Weight
|
1,500 Kg
|
1,500 Kg
|
|
Power Consumption (Cable Size)
|
5KVA (Min. 4 SQ)
|
5KVA (Min. 4 SQ)
|
|
Air Flow Rate
|
120~150 Liter / Min
|
120~150 Liter / Min
|
