Optimized Cross tool for Special tool

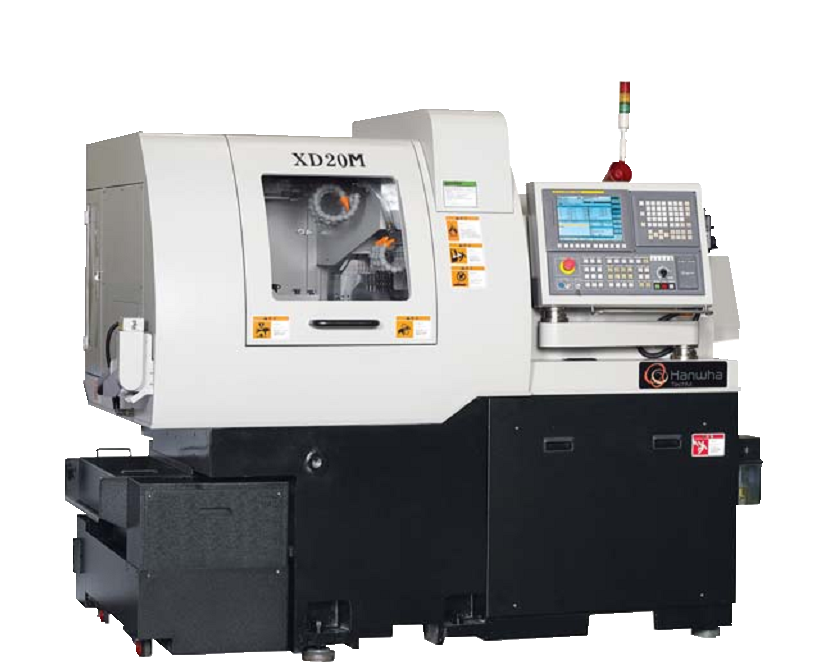

MODEL
XD20M
NC
HANWHA FANUC i / SIEMENS
Max Turning Ø in Main
20Ø
Max Chucking Ø in Sub
Tool
OD TOOL
5 EA
CROSS TOOL
5 EA [ER16: 2EA,ER11: 3EA]
FRONT TOOL
BACK TOOL
4EA [ER16 / 2 FIXED , 2 DRIVEN]
LONG GUNDRILL
2 EA [ER16 / FIXED]
Front Tool
Max Drilling Ø
Ø10 mm
Max Tapping M
M8
Cross Tool
Ø10 mm [ER16]
M6 [ER16]
Max Slotting
Width 1.5 mm X Depth 4.0 mm
Back Tool
Max Drilling (Fix)
Max Drilling(Driven)
Ø8 mm [ER16]
Max Tapping (Fix)
M8 [ER16]
Max Tapping(Driven)
Main Spindle Motor
rpm
10,000rpm
power
2.2/3.7 Kw
Sub Spindle Motor
8,000rpm
1.5/2.2 Kw
Cross Tool Motor
6,000rpm
1 Kw
Back Tool Motor
6,000 rpm
Coolant Tank (Liter)
170 Liter
Machine Weight
2,700 Kg
Power Consumption (Cable Size)
15 KVA (Min 4 SQ)
Air Flow Rate
120~150 Liter / Min
