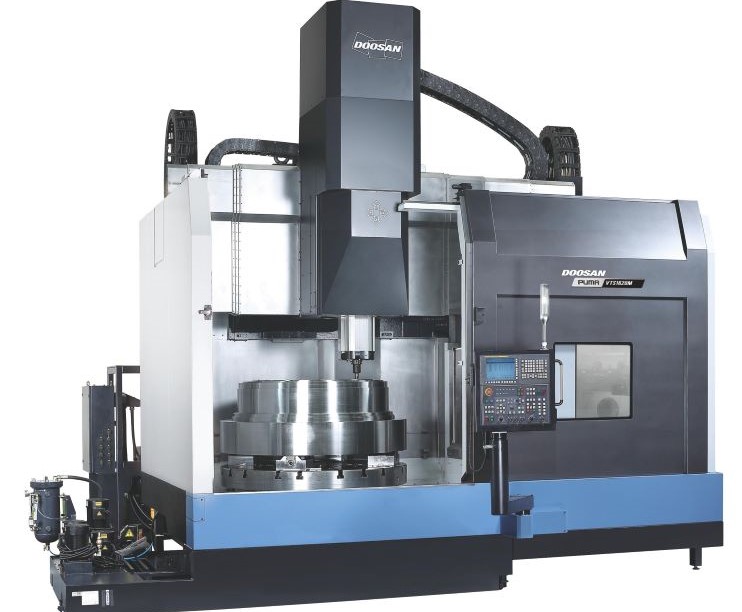

With its large capacity and heavy duty machining capability, The PUMA VTS series provides excellent productivity for large workpieces
The PUMA VTS series provides optimum durability by including box guideway construction to all linear axes. The large diameter cross taper roller bearing used in the spindle construction provides high rigidity and accuracy for heavy duty machining applications
Highest Cutting Capacity among Competitors Provides maximum workpiece size capacity
The PUMA VTS1620M series provides extended durability and stable accuracy by implementing a large diameter cross roller bearing for the spindle and box guideways for the linear axes.
The PUMA VTS1214 series has minimized heat and vibration emissions using a separable-type gearbox, and it exhibits a high rigidity in heavy duty cutting using large bearings.
|
Description
|
Unit
|
PUMA VTS1620
|
PUMA VTS1620M
|
PUMA VTS1214
|
PUMA VTS1214M
|
|
Max. Turning diameter
|
mm (inch)
|
2000 (78.7)
|
1350 (53.1)
|
|
Travel distance
|
X-axis
( To left from table center )
|
mm (inch)
|
127 (5.0)
|
152 (6.0)
|
|
X-axis
( To right from table center )
|
mm (inch)
|
1600 (63.0)
|
1298 (51.1)
|
|
Z-axis
|
mm (inch)
|
960 (37.8)
|
800 (31.5)
|
|
C-axis
|
deg
|
-
|
360
|
-
|
360
|
|
W-axis
|
mm (inch)
|
770 (30.3)
|
580 (22.8)
|
|
Rapid Traverse Rate
|
X-axis
|
m/min (ipm)
|
12 (472.4)
|
12 (472.4)
|
|
Z-axis
|
m/min (ipm)
|
12 (472.4)
|
12 (472.4)
|
|
C-axis
|
deg/min
|
-
|
900
|
-
|
900
|
|
Max. Spindle speed
|
r/min
|
250
|
630
|
|
Tool storage capa.
|
stations
|
18 {24}*
|
15 {24}*
|
