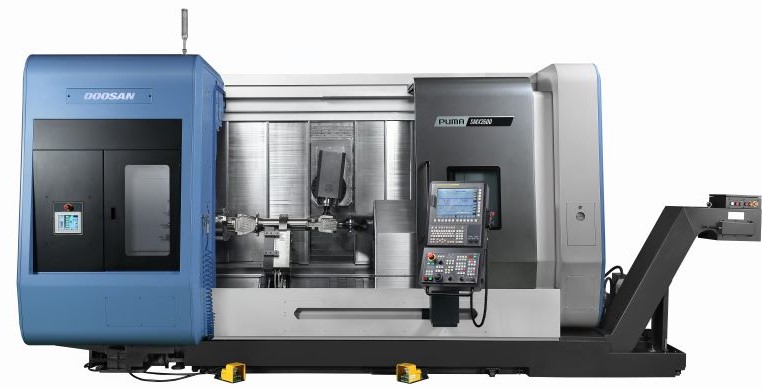

Higher Productivity through Powerful Multi-tasking Functions Decreases the total processing time and number of machining operations by using a single setup. This provides excellent high speed performance for component manufacturing processes which require accurate and complex machining.
Complex machining capabilities of left spindle, right spindle, B-axis , milling spindle and lower turret
High-rigidity machine construction using structural analysis design
Maximized Y-axis machining area through orthogonal design structure
Maximize productivity through simultaneous machining
Enhanced Precision through High Accuracy Control Functions Maintains excellent precision during long-term machining processes by minimizing the thermal deformation of the spindle and the feed axis, and maximises precision throughthe 0.0001° axis resolution control function.
Minimized thermal deformation of the spindle and feed axis using oil cooler
Adoption of Roller LM Guideways with high-rigidity and high precision
Equipped with 0.0001° B-axis and C-axis accuracy control function
Easy and Convenient Operation through an Ergonomic DesignFeatures excellent maintenance as well as usability and convenience through customized functions. Front located tool magazine Side-to-side movable swiveling operation panel with adjustable height Convenient ATC - MAGAZINE operation panel
|
Description
|
Unit
|
PUMA SMX2600
|
PUMA SMX3100/L
|
PUMA SMX 2600S/
ST
|
PUMA SMX3100S/ LS/ST
|
|
Chuck (Left spindle)
|
inch
|
10 {12}*
|
12 {15}*
|
10 {12}*
|
12 {15}*
|
|
Chuck
(Right spindle)
|
inch
|
-
|
10 {12}*
|
|
Max. turning diameter
|
mm (inch)
|
660 (26.0)
|
|
Max. turning length
|
mm (inch)
|
1540 (60.6)
[SMX3100L/LS : 2540(100)]
|
|
Spindle speed
|
r/min
|
4000
|
3000
|
Left / Right : 4000
|
Left : 3000
Right : 4000
|
|
Motor power
|
kW (Hp)
|
26/22 (34.9/29.5)
|
30/25 (40.2/33.5)
|
26/22 (34.9/29.5)
|
30/25 (40.2/33.5)
|
