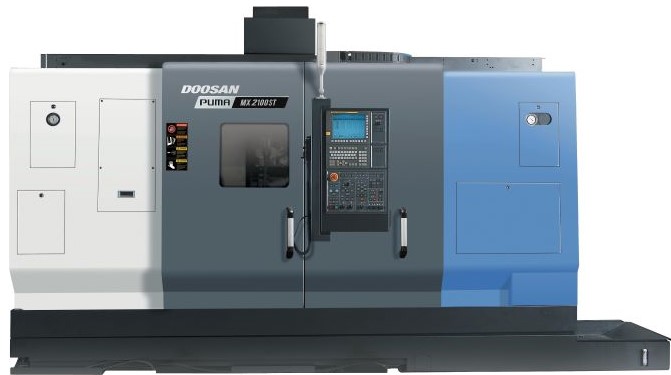

PUMA MX MULTI-TASKING TURNING CENTER

#Item : PUMA MX

Price : N/A

Contact :

 Doosan brand multi-tasking machine which can be used to carry out turning and milling work on complex parts

in the same machine, finally obtaining the finished part. Its perfect combination of lathe and machining centre
makes it possible to perform a wide range of simple and complex operations with unprecedented flexibility.


Product Detail

  The heavily ribbed torque tube design prevents twisting and deformation. All guide ways are wide wrap-around rectangular type further provide  long-term stability and reliable production.

Perfect integration of key axes Puma MX series provides unmatched flexibility with a wide variety of machine configurations. From simple turning and milling to complex multi-axis simultaneous machining, multiple operations can be completed within a single Puma MX.

ST model of PUMA MX series has whole controlled axis from 3 spindles(B-axis spindle to Left /Right spindle) with lower turret.  Their perfect control combination is key factor to ensure multi-tasking performance.

Thermal compensation for B-axis Milling spindle thermal growth can be compensated for spindle axis direction only. Effectively removes positional deviation of spindle nose due to changing rotational speed.

B-axis swivel control B-axis index that can have swivel positioning of every 0.001˚ in ±120 ˚ performs not only horizontal front face machining but also angular machining.

Left / Right Spindle Both spindles, left and right, are engineered to minimize the loss of precision through thermal distortion, and to ensure superior performance in applications ranging from heavy-duty cutting at high power and low speed, to fine finishing at high speed.

Perfect combination of 3 key spindles to ensure machining stability under various cutting conditions.

Milling spindle Oil-based coolants circulate through the milling spindle, allowing perfect integration of turning and milling applications. An air-gap sensor confirms the clamping status of both tools and parts.

Perfect combination of 3 key spindles to ensure machining stability under various cutting conditions.

Servo driven tailstock Servo tailstock make part set-up faster and easier. The operator inputs the proper M-code information in the control and tailstocks move to its proper positions automatically by linear motion control of servo motor and ball screw. No manual adjustments are required.

More easier and faster  set-up of the tailstock using M-code program by servo motor and ball screw

Servo driven Lower turret on T/ST model Turret rotation, acceleration and deceleration are controlled by a high-torque servo motor. Unclamp and rotation are virtually simultaneous. The fast index response keeps cycle times short.

Strong and rigid lower turret in multi-tasking is to provide more powerful manufacturing performance and a variety of new applications

Servo driven ATC & Tool magazine The tool magazine can be increased up to 80 tools(except PUMA MX1600/735 series). Tools are selected by a fixed address method that follows the shorter path.

Servo ATC and Servo tool magazine ensuring fast and reliable tool indexing.

Machine Airbag Function Machine airbag function minimizes damage in the event of a machine collision, defect or heavy load by detecting sudden axis load increase.

PUM MX series is ideal for heavy and interrupted cutting and also your productivity by machining your part with fewer set-ups, shorter changeover and lead time.







Description



Unit

MX1600/735

/ MX1600

MX1600S/735

/ MX1600S

MX1600T/735

/ MX1600T

MX1600ST/735

/ MX1600ST

Capacity

Swing over bed

mm (inch)

680 (26.8)

Recom. Turning diameter

mm (inch)

170 (6.7)

Max. Machining diameter

mm (inch)

330 (13.0)

Max. Turning length

mm (inch)

700 / 900 (27.6 / 35.4)

Chuck size

inch

6

Bar working diameter

mm (inch)

51 (2.0)

Travels







Travel distance

X1-axis

mm (inch)

450 (17.7)

Z1-axis

mm (inch)

735 / 935 (28.9/ 36.8)

Y-axis

mm (inch)

170 (±85) (6.7 (±3.3))

X2-axis

mm (inch)

-

-

165 (6.5)

Z2-axis

mm (inch)

-

-

725 / 925 (28.5 / 36.4)

A-axis

mm (inch)

-

735/935 (28.9 / 36.8)

-

735/935 (28.9 / 36.8)

Feedrate





Rapid Traverse Rate

X1-axis

m/min (ipm)

36 (1417.3)

Z1-axis

m/min (ipm)

36 (1417.3)

Y-axis

m/min (ipm)

26 (1023.6)

X2-axis

m/min (ipm)

-

-

24 (944.9)

Z2-axis

m/min (ipm)

-

-

36 (1417.3)

A-axis

m/min (ipm)

-

30 (1181.1)

-

30 (1181.1)

Left spindle

Max. Spindle speed

r/min

6000

Spindle nose

ASA

A2-5

Spindle bearing diameter (Front)

mm (inch)

100 (3.9)

Spindle through hole

mm (inch)

62 (2.4)

Min. spindle Indexing angle(C-axis)

deg.

0.0001

Right spindle

Max. Spindle speed

r/min

-

6000

-

6000

Spindle nose

ASA

-

A2-5

-

A2-5

Spindle bearing diameter (Front)

mm (inch)

-

100 (3.9)

-

100 (3.9)

Spindle through hole

mm (inch)

-

62 (2.4)

-

62 (2.4)

Min. spindle Indexing angle(C-axis)

deg.

-

0.001

-

0.001

Milling spindle

Max. spindle speed

r/min

12000 {18000}*

Min. spindle Indexing angle(B-axis)

deg.

0.001

Automoatic Tool Changer

Tool storage capa. (Max.)

ea

40 / 40 {80}*

Tool changer arm



SWING ARM

Tool selection



FIXED ADDRESS

Max. tool diameter

Continous

mm (inch)

70 (2.8)

Without Adjacent Tools

mm (inch)

95 (3.7)

Max. tool length

mm (inch)

200 (7.9)

Max. tool weight

kg (Ib)

4 (8.8)

Max. tool moment

N·m (ft-lbs)

3.9 (2.9)

Tool change time (T-T-T)

s

2.1

Lower Turret

No. of tool stations

ea

-

-

8{16, BMT45P}* / 16, BMT45P

OD tool size

mm (inch)

-

-

20 x 20 (0.8 x 0.8)

Max. boring bar size

mm (inch)

-

-

32 (1.3)

Turret Indexing time(1 station swivel)

s

-

-

0.2 / 0.35

Max. Rotary tool speed

r/min

-

-

{6000}* / 6000

Servo driven Tailstock

Quill diameter

mm (inch)

-

-



-

Quill bore taper

MT

Built-in dead #4

-

Built-in dead #4

-

Quill travel

mm (inch)

735/935 (28.9/36.8)

-

735/935 (28.9/36.8)

-

Motors

Left spindle motor power

kW (Hp)

15 / 11 (20.1 / 14.8)

Right spindle motor power

kW (Hp)

-

15 / 11

(20.1 / 14.8)

-

15 / 11

(20.1 / 14.8)

Milling spindle motor power

kW (Hp)

9/7.5/3.7 (12.1/10.1/4.7)

Coolant pump motor power

kW (Hp)

2.5(3.4)

Power source

Electric power supply (rated capacity)

kVA

43.35

55.28

50.77

64.42

Machine Dimensions

Height

mm (inch)

2780 / 2760 (109.4 / 108.7)

Length

mm (inch)

3300 / 3800 (129.9 / 149.6)

Width

mm (inch)

2686 / 2530 (105.7 / 99.6)

Weight

kg (Ib)

10800 / 11100

(23809.9 /

24470.9)

11100 / 11400

(24470.9 /

25132.3)

11000 / 11300

(24250.8 /

24911.9)

11300 / 11600

(24911.9 /

25573.2)
