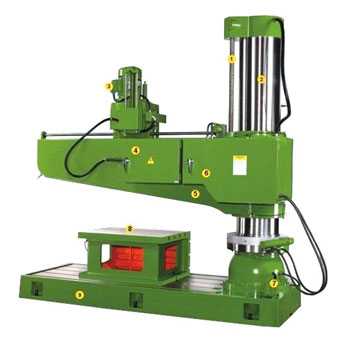

HYDRAULIC CLAMPING TPR-C2500

#Item : TPR-C2500

Price : N/A

The Radial Drill Arm adopts IC Timer with advantage of one bottom press, it can automatically release up/down movement, stop, and automatically clamping easy to operate. The spindle can still maintain in original set after the tools change.
Special arm elevating safety device is provided to prevent arm from falling down abruptly after year of usage. It will keep us from injurious dropping whenever the copper nut is excessively worn.
Exclusively for gears type cycling ril pump is furnished to cool off precise gears inside gear box,and minimize excessive wear on gears to lowest extent.
Friction type disc clutch is adopted to absorb inpact force caused by vertical movement of spindle, and effectively protect all transmission unit inside gear box. With the function of quick spindle return, this clutch will also help us to speed up our tapping operation.
Equipped with hydraulic clamping system, with proper selection on change switch, column, arm, gear box can be clamped/rekeased independently.
Speed Changing function is driven by hydraulic power and equipped with quick preset device

Product Detail

Features
Speciﬁcations
Image Report
Options
Video

The Radial Drill Arm adopts IC Timer with advantage of one bottom press, it can automatically release up/down movement, stop, and automatically clamping easy to operate. The spindle can still maintain in original set after the tools change.
Special arm elevating safety device is provided to prevent arm from falling down abruptly after year of usage. It will keep us from injurious dropping whenever the copper nut is excessively worn.
Exclusively for gears type cycling ril pump is furnished to cool off precise gears inside gear box,and minimize excessive wear on gears to lowest extent.
Friction type disc clutch is adopted to absorb inpact force caused by vertical movement of spindle, and effectively protect all transmission unit inside gear box. With the function of quick spindle return, this clutch will also help us to speed up our tapping operation.
Equipped with hydraulic clamping system, with proper selection on change switch, column, arm, gear box can be clamped/rekeased independently.
Speed Changing function is driven by hydraulic power and equipped with quick preset device.

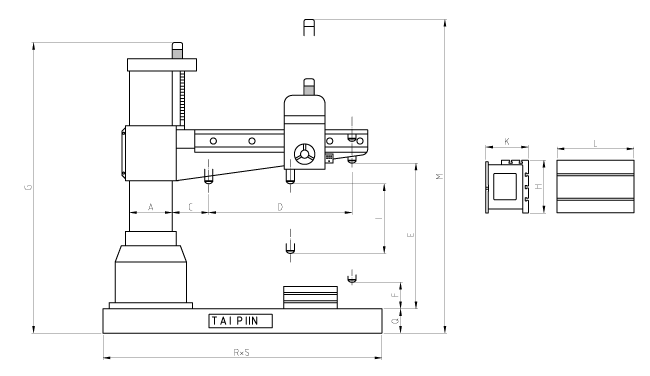

MODEL				TPR-C2500
Dai.of column/ Đường kính trụ				550	A
Distance from column surface to spindle center , Max/ Khoảng cách Max. từ bề mặt trụ tới tâm trục chính				2500	D+C
Distance from column surface to spindle center , Min/ Khoảng cách Min. từ bề mặt trụ tới tâm trục chính				500	C
Travel of spindle head/ Hành trình đầu trục chính				2000	D
Distance from base surface to spindle end , Max Khoảngng cách max. từ đế máy tới đầu trục				2000	E
Distance from base surface to spindle end , Min/ Khoảng cách min. từ đế máy tới đầu trục				550	F
Elevating height of Arm/ Chiều cao dịch chuyển lên của cần				1000	E-F-I
Effective area of box table/ Vùng làm việc của bàn máy				1000×800×560	L×K×H
Dimension of base/ Kích thước đế máy				3520×1400×320	R×S×Q
Taper hole spindle/ Lỗ côn trục				MT#6
Stroke of spindle/ Hành trình trục				450	I
R.P.M of spindle Tốc độ trục chính (rpm x steps)			50HZ	16-1250×16 steps
			60HZ	16-1250×16 steps
Feed of spindle / Tốc độ cắt phôi (rev. x steps)				0.04, 3.20 ×16
Main motor/ Động cơ trục chính (HP)				10HP
Elevating motor / Động cơ nâng cần (HP)				5HP
Hydraulic clamping motor/ Động cơ kẹp thủy lực (HP)				1HP
Coolant equipment/ Động cơ tưới nguội (HP)				1/4HP
Machine height from floor / Chiều cao lớn nhất của máy từ nền (Max.)				3990	M
Base + column height/ Chiều cao của trụ + chân đế máy				3850	G
Net weight / Trọng lượng máy (approx)kgs				11000
Shipping weight/ Trọng lượng đóng gói (approx)kgs				12500
Shipping dimensions/ Kích thước đóng kiện (LxWxH)				4160×1880×3850
Capacity Khả năng	Drilling Khoan	Steel/ Thép		80Φ
		Cast iron/ Gang		100Φ
	Tapping Ta rô	Steel/ Thép		65Φ
		Cast iron/ Gang		75Φ
