Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions to enable the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.
Integrated with O frame, Y axis chassis construction approved by ANSYS and ensures high
| Item |
Unit |
RM11 |
RM11-S |
| Punching Capacity |
Ton |
20 |
20 |
| X Traverse Length |
mm |
1250±10 |
1250±10 |
| Y Traverse Length |
mm |
1250±10 |
1250±10 |
| Max sheet Size |
mm |
1250*2500 |
1250*2500 |
| Max sheet Thickness |
mm |
6.35 |
6.35 |
| Max Sheet Weight |
kg |
110 |
110 |
| X-Axis Travel |
m/min |
70 |
70 |
| Y-Axis Travel |
m/min |
60 |
65 |
| Max Traverse Speed |
m/min |
92 |
95.5 |
| Punching Speed at 25mm pitch |
hit/min |
210 |
200 |
| Nibbling Speed |
hit/min |
350 |
350 |
| Tool Type |
|
Thick Turret |
Thick Turret |
| Max Punching Diameter |
mm |
88.9 |
88.9 |
| Number of Tool Station |
PCS |
34 |
34 |
| Number of Auto Index Station |
PCS/Type |
2/(B) 2B |
2/(B) 2B |
| Turret Rotating Speed |
rpm |
30 |
30 |
| Auto Index Rotating Speed |
rpm |
50 |
50 |
| Ram Stroke |
mm |
32 |
32 |
| Working Table |
|
Brush |
Brush |
| Supporting Ball Set |
|
Optional |
Optional |
| Number of Clamp |
PCS |
2 |
2 |
| Power Supply |
KVA |
15 |
15 |
| Air Supply |
NL/min |
250 |
250 |
| Oil Tank Volume |
Litre |
85 |
85 |
| Air Pressure |
Bar |
5 |
5 |
| Machine Dimension(LxWxH) |
mm |
4520*2640*2145 |
4520*2640*2145 |
| Machine Weight (approx.) |
kg |
11000 |
11000 |
| Control Cabinet Dimension |
mm |
700*525*1880 |
700*525*1880 |
| CNC Controller |
|
FANUC Oi-PD |
Siemens 802d sl G/N pro |
| Number of Controllable axis |
Axis |
4 |
5 |
| Memory Capacity |
KB |
512 |
3060 |
| Serial Interface |
|
RS232/RJ45/PCMCIA |
RS232+RJ45+USB |
| Accuracy |
mm |
±0.1 |
±0.1 |
- Specifications are subjects to change without prior notice.
- Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
- Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

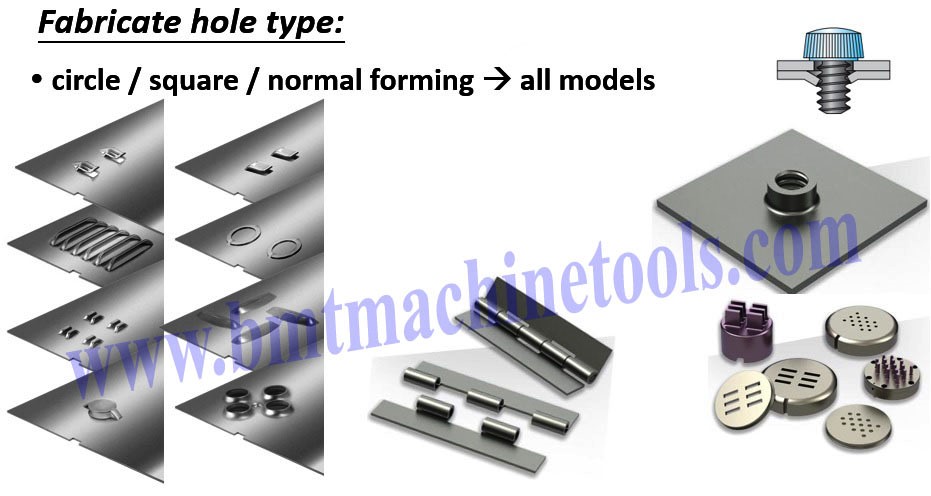

Standard
- Supporting Ball Set
- Anti-vibration Foot Mounts
- Sheet Distortion Sensor
- Heavy-duty Clamp
- Die Holder Brush
- Repositioning Cylinder
Optional
