The linear axis movement for rapid workpiece exchange.
User friendly touch panel interface, which is easy to operate.
The X&Y axis are controlled by servo motor, the repeatability accu-racy is +/- 0.05mm.
Adopts with the pneumatic gripper, which could clamp/unclamp the workpiece without scrap.
One piece crossbeam enhance the structure.

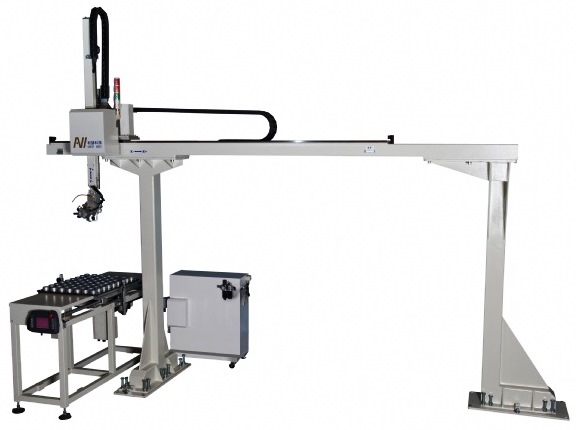

The gantry robot is customized to adopts with all kinds of machine and production line.
|
Cross travel
|
X
|
Customized
|
|
Y
|
Customized
|
|
Rapid feed
|
X
|
120 m/min
|
|
Y
|
120 m/min
|
|
Precision
|
+/- 0.05 mm
|
|
Load capacity
|
1-15 Kg/pc
|
|
Exchangetime
|
8~12 Sec
|
|
Power consumer(3φ,220V)
|
2 kva ~ 6 kva
|
|
Pneumatic consumer
|
5.5 kg/cm2,50~60 l/min
|
