CIRCULAR SAW MACHINE

#Item : MCDIA01

Price : N/A

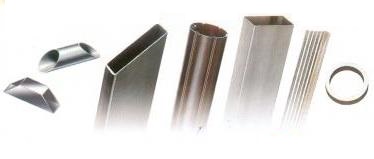

The Sawing Machines & Cutting Machines Available Range:It is an appropriate machine model for thick,middle,and thin hollow tubes,and solid tubes.This model is driven by two-set gears,with great torque force,suitable for ...

Product Detail

Features
Specifications
Image Report
Options
Video clip

C-325
- Features of Hand-operated Tongs and Saw Feeding
  - Quick measurement of the size, hand-operated tongs, hand-operated saw feeding and withdrawing; you can control the saw feeding at any time and give the appropriate pressure in accordance with the size of a tube when doing the action of saw feeding; the saw blade can be used for a long time.
C-325-1A
- Features of Automatic Tongs Hand-operated Saw Feeding
  - Besides the features of C-275, the automatic clamping function is another feature. When finishing measuring a tube's length, you can press down the switch, and the tube will be clamped tight immediately, which is able to avoid the danger of saw feeding without being clamped tightly.
C-325-2A
- Features of Automatic Tongs Automatic Saw Feeding and Withdrawing
  - The model is most appropriate for huge amount. When finishing adjusting the saw blade and a tube's length, you can press down the pedal switch, and it will execute the functions of clamping and saw feeding, which will save the production time.
C-325-3A
- Features of Automatic Tongs, Automatic Saw Feeding and Withdrawing, Feed, and Positioning
  - Using the PLC controller, control buttons are located together, allowing for simple operation, agile, easy to maintain.
  - Uniquely designed, most suited for floating feed system, accurate and rapid feeding does not damage workpiece surfaces.
  - Equipped with digital display for easy cutting length adjustment, quick and accurate.
  - The tongs' pressure is adjustable at will, ensuring that the tubes will not deform and be damaged.
  - Equipped with electronic-type saw blade protection device, the machine will stop automatically after the saw blade is blunt.
  - Equipped with the counting device that can set the amount and the function of machine stopping.
  - The automatic non-material machine stopping device.
  - Iron chippings are treated together, convenient and clean.

Model	C-325	C-325-1A	C-325-2A	C-325-3A
Head Rotating Angle	90° / 45°	90° / 45°	90° / 45°	90°
Sawing Capacity Area: mm-Solid Bar	55 / 45	55 / 45	55 / 45	55
Sawing Capacity Area: mm-Round Tube	105 / 100	105 / 100	105 / 100	105
Sawing Capacity Area: mm-Angle Steel	100 x 100 / 90 x 90	100 x 100 / 90 x 90	100 x 100 / 90 x 90	100 x 100
Sawing Capacity Area: mm-Square Tube	100 x 100 / 90 x 90	100 x 100 / 90 x 90	100 x 100 / 90 x 90	100 x 100
Sawing Capacity Area: mm-Trough-shaped Steel	100 x 100 / 90 x 90	100 x 100 / 90 x 90	100 x 100 / 90 x 90	100 x 100
Sawing Capacity Area: mm-Rectangular Steel	125 x 90 / 125 x 80	125 x 90 / 125 x 80	125 x 90 / 125 x 80	125 x 90
Cutting Motor	A:3/2HP - 2 / 4P B:2HP / 1.4HP - 4/8P	A:3/2HP - 2 / 4P B:2HP / 1.4HP - 4/8P	A:3/2HP - 2 / 4P B:2HP / 1.4HP - 4/8P	A:3/2HP - 2 / 4P B:2HP / 1.4HP - 4/8P
Cutting Speed	A: 100/50 rpm B:50/25 rpm	A: 100/50 rpm B:50/25 rpm	A: 100/50 rpm B:50/25 rpm	A: 100/50 rpm B:50/25 rpm
Cooling Pump Power	1/8HP	1/8HP	1/8HP	1/8HP
Required Air Pressure	4 - 6 kgs/cm²	4 - 6 kgs/cm²	4 - 6 kgs/cm²	4 - 6 kgs/cm²
Used Circular Saw Blade	HSS BLADE 250/325mm	HSS BLADE 250/325mm	HSS BLADE 250/325mm	HSS BLADE 250/325mm
Feeding Length	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (just for 3A models)	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (just for 3A models)	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (just for 3A models)	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (just for 3A models)
Dimensions(mm)	L1000 x W650 x H1420	L1000 x W650 x H1420	L1000 x W850 x H1350	L1000 x W2150 x H1700
Weight	200 kgs	210 kgs	260 kgs	700 kgs
Standard Accessories	HSS BLADE Dia.300mm Standard Accessories: A high-speed steel saw blade, a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.	HSS BLADE Dia.300mm Standard Accessories: A high-speed steel saw blade, a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.	HSS BLADE Dia.300mm Standard Accessories: A high-speed steel saw blade, a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.	HSS BLADE Dia.300mm Standard Accessories: A high-speed steel saw blade, a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus
