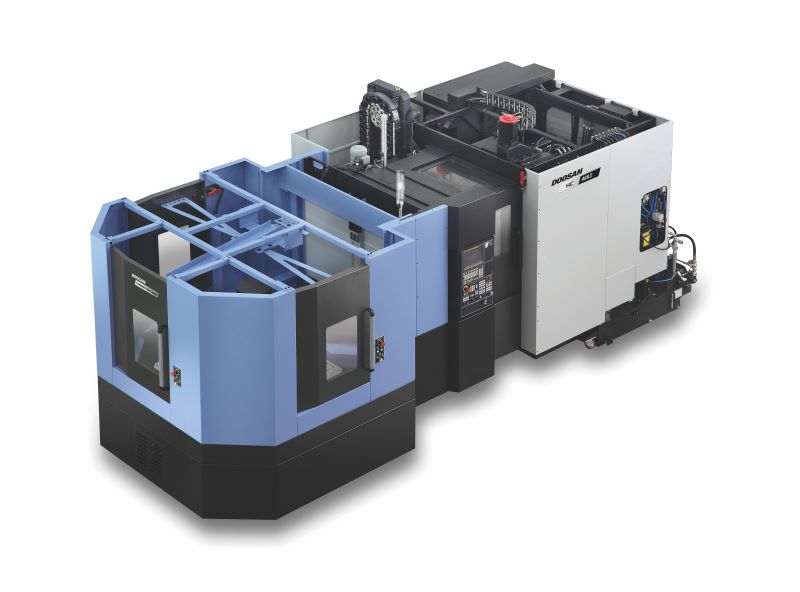

Enhanced Design New aesthetics and simplified design eases machine operation.
Increased Productivity New high speed 12,000rpm spindle, wider selection of tool magazine and automation options further enhances versatility and productivity.
Improved Ergonomics Newly designed operation panel and built-in pallet setup switch further improves ergonomics of the machine.
Doosan engineers have performed FEM analysis to design the most durable and stable structure. As a result, the machine is capable of extensive heavy cutting process.
Highly rigid machine structure and compact design to meet all users’ needs.
The compact design allows users to utilize limited factory space efficiently.
LM roller guides on all axes increases machine reliability and productivity.
All axes utilize highly reliable and durable LM roller guides.
Users can select different types of high performance spindle to meet their machining needs. Standard 8,000rpm spindle can deliver up to 353.4N∧m of torque to perform extreme heavy cutting process, while 12,000rpm spindle option can provide maximum productivity in high speed cutting process.
80 tool magazine has been added to offer wider range of ATC magazine options.
Wide selections of tool magazines are available per user’s preference. These automatic tool magazines are operated by our newest servo motor to minimize tool change time, and the fixed address tool storage system makes it easy for users to select desired tool without confusion.
Cam-type ATC provides high reliability and durability, and minimizes non-cutting time.

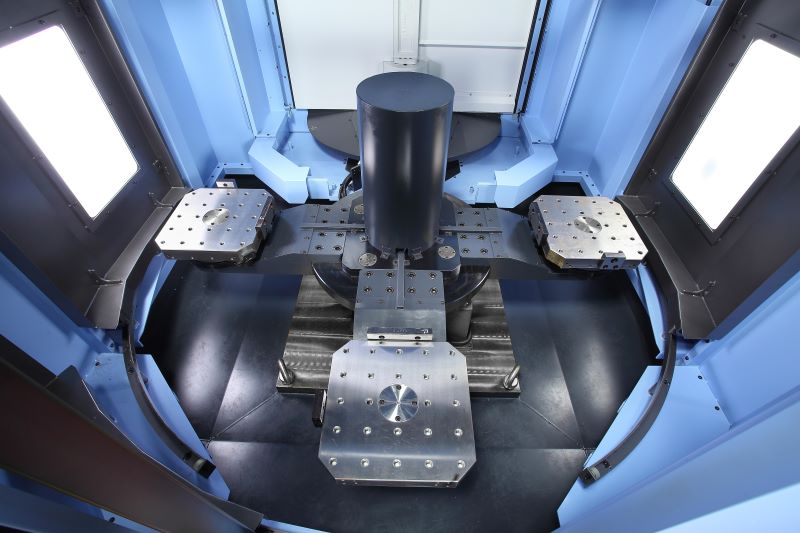

Standard high speed rotary type APC provide extreme reliability and a large work space allows users to easily setup the pallet.
Diverse optional features are available to meet specific customer requirements.
Proper chip disposal is very important for improving productivity and environment. Therefore, we recommend better chip
management for users to work in a safer working environment.
Doosan Pallet Extension System provides automated solution to maximize productivity. Simple installation and ease of maintenance makes it convenient for users to operate and maintain.
Compact and simple multiple pallet system that allows users to maximize productivity and efficiency.
Doosan’s MPS allows users to program and automate up to 7 pallets. This system is ideal for manufacturing variety of parts in small quantity.

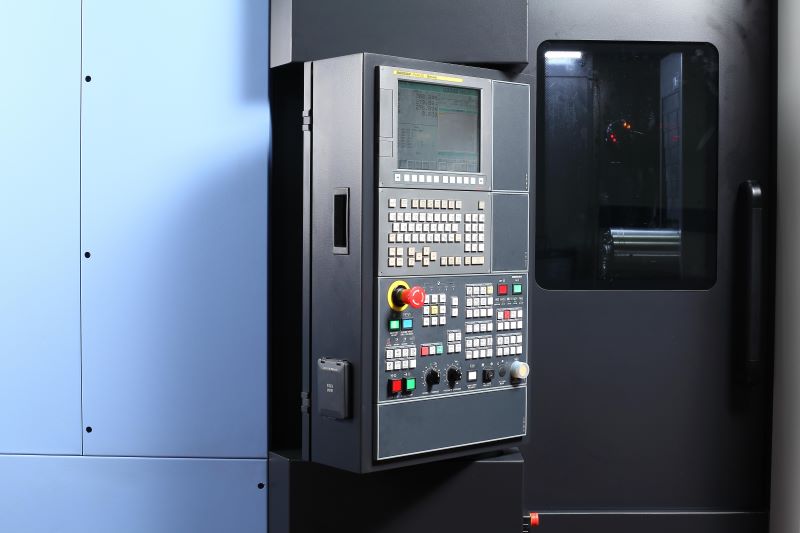

Doosan’s new operation panel design is uniform throughout all new Doosan machines, and it includes number of custom keys which can be utilized by the users to further improve ease of operation.
Doosan's Easy Operation Package (EOP) allows operators to conveniently and efficiently control the machine with support functions such as tool, help, operation, and pallet magazine.
|
Description
|
Unit
|
HC 400Ⅱ
|
HC 500Ⅱ
|
|
Machining Capacity
|
Travel distance
|
X-axis
|
mm (inch)
|
600 (23.6)
|
850 (33.5)
|
|
Y-axis
|
mm (inch)
|
560 (22)
|
700 (27.6)
|
|
Z-axis
|
mm (inch)
|
565 (22.2)
|
750 (29.5)
|
|
Distance from spindle nose to table center
|
mm (inch)
|
150 ~ 715 (5.9 ~ 28.1)
|
150 ~ 900 (5.9 ~ 35.4)
|
|
Distance from spindle center to table top
|
mm (inch)
|
50 ~ 610 (1.9 ~ 24)
|
50 ~ 750 (1.9 ~ 29.5)
|
|
Feedrate
|
Rapid Feedrate
|
X-axis
|
m/min (ipm)
|
40 (1574.8)
|
|
Y-axis
|
m/min (ipm)
|
40 (1574.8)
|
|
Z-axis
|
m/min (ipm)
|
40 (1574.8)
|
|
Cutting feedrate
|
mm/min(ipm)
|
20000 (787.4)
|
|
Pallet
|
Pallet type
|
|
24-M16 X P2.0
|
|
Pallet indexing angle
|
deg
|
1 {0.001}*
|
|
Max. loading capacity
|
kg (lb)
|
400 (881.8)
|
500 (1102.3)
|
|
Max. workpiece size
|
mm (inch)
|
600 x 800 (23.6 x 31.5)
|
800 x 900 (31.5 x 35.4)
|
|
Pallet size
|
mm (inch)
|
400 x 400 (15.7 x 15.7)
|
500 x 500 (19.7 x 19.7)
|
|
Spindle
|
Max. spindle speed
|
r/min
|
8000 {12000}*
|
|
Data specification
|
|
ISO #40, 7/24 TAPER
|
|
Max. torque
|
N·m (ft-lbs)
|
353.4 {117}* (260.6 {86.3})
|
|
Automatic Pallet Changer (APC)
|
No. of pallets
|
ea
|
2
|
|
Pallet change time
|
s
|
8
|
8.5
|
|
Indexing angle (rotation)
|
deg
|
90
|
|
Automatic Tool Changer (ATC)
|
Tool shank type
|
|
BT40 {CAT40 / DIN 40 / HSK-A63}*
|
|
Tool storage capacity
|
|
ea
|
40 {60 / 80 / 120}*
|
|
Matrix Type
|
ea
|
{170 / 262}*
|
|
Max. tool diameter
|
W/O adjacent tool
|
mm (inch)
|
75 (2.9)
|
|
With adjacent tool
|
mm (inch)
|
140 (5.5)
|
|
Max. tool length
|
mm (inch)
|
300 (11.8)
|
400 (15.7)
|
|
Max. tool weight
|
kg (lb)
|
10 (22)
|
|
Max. tool moment
|
N·m (ft-lbs)
|
11.8 (8.7)
|
|
Tool change time (T-T-T, tool weight less than 12K)
|
s
|
1.5
|
|
Tool change time (C-T-C, tool weight less than 12K)
|
s
|
4
|
|
Motor
|
Spindle motor power
|
kW (Hp)
|
18.5 / 11 (24.8 / 14.7)
|
|
Power Source
|
Power consumption
|
kVA
|
58
|
|
Compressed air pressure
|
Mpa (psi)
|
0.54 (78.3)
|
|
Tank Capacity
|
Coolant tank capacity
|
L (galon)
|
550 (145.3)
|
640 (169.1)
|
|
Lube tank capacity
|
L (galon)
|
1.4 (0.37)
|
|
Machine Dimensions
|
Height
|
mm (inch)
|
2830 (111.4)
|
3000 (118.1)
|
|
Length
|
mm (inch)
|
4630 (182.3)
|
5320 (209.4)
|
|
Width
|
mm (inch)
|
2260 (88.9)
|
2680 (105.5)
|
|
Weight
|
kg (lb)
|
11000 (24250.8)
|
12500 (27557.8)
|
