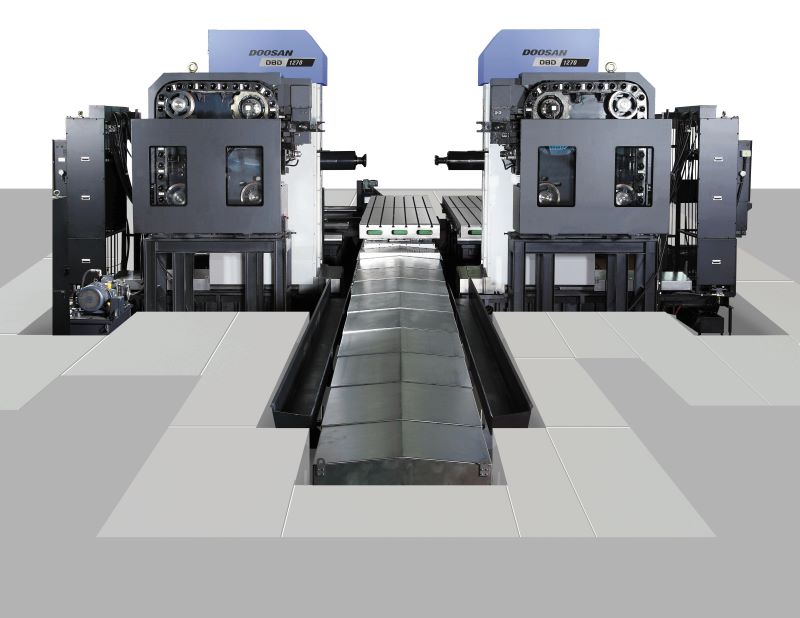

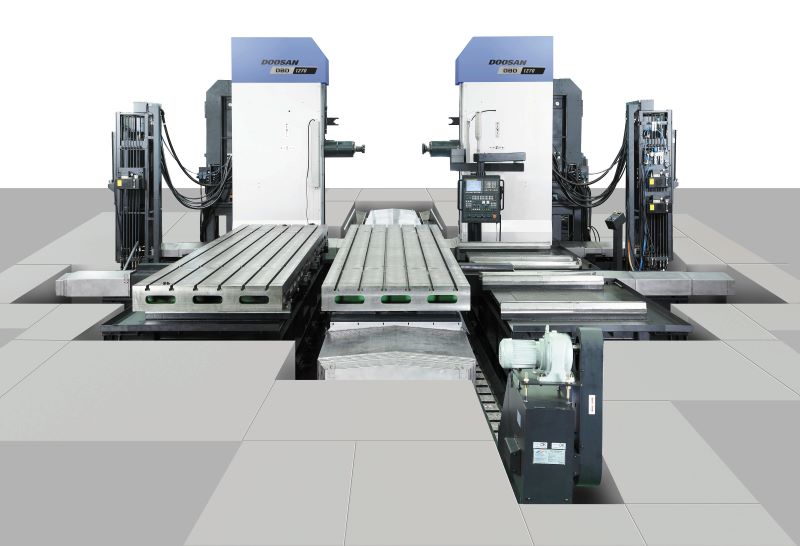

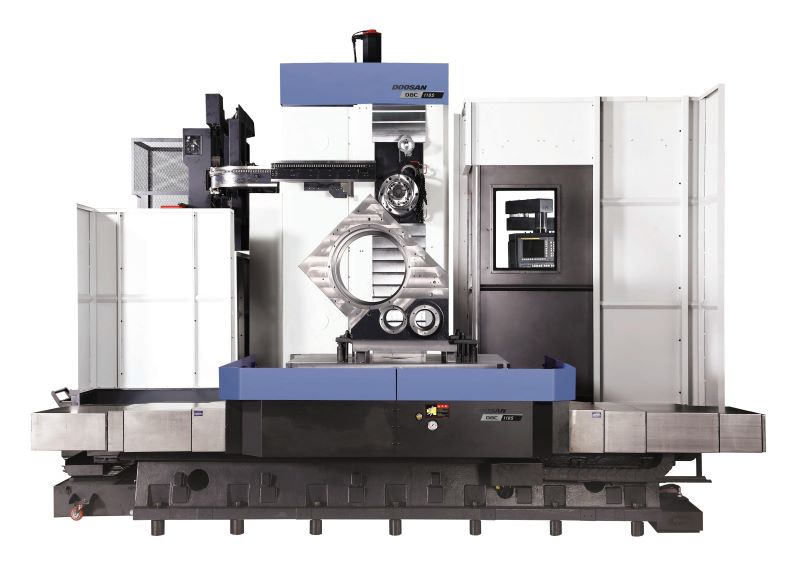

• Concentric machining through duplex spindle
• Big table for long and symmetrical maching
• Wide work area through axes extension
Table moving type realized by Linear Motion Guide provides fast rapid traverse.
Spindle driving torque optimized by 3-steps gear change mechanism
Tool Magazine by servo control will be accomplished higher reliability, speed smooth operation and reducing noise.
|
Description
|
Unit
|
DBD 1270
|
DBD 1580
|
|
Travels
|
|
X-axis
|
mm (inch)
|
7000 (275.6)
|
8000
|
|
Y-axis
|
mm (inch)
|
1500 (59.1)
|
2000
|
|
Z-axis
|
mm (inch)
|
1000 (39.4)
|
450
|
|
W-axis
|
mm (inch)
|
|
500
|
|
Spindle center to table top
|
mm (inch)
|
150~1650 {150~2150}
(5.9~64.9 {5.9~84.6})
|
0~2000
|
|
Distance between spindles
|
mm (inch)
|
500~2500 (19.7~98.4)
|
400~2300
|
|
Feedrates
|
Rapid Traverse Rate
|
X-axis
|
mm/min (ipm)
|
12000 (472.4)
|
10000
|
|
Y-axis
|
mm/min (ipm)
|
12000 (472.4)
|
10000
|
|
Z-axis
|
mm/min (ipm)
|
12000 (472.4)
|
6000
|
|
Cutting feedrate X / Y / Z-axis
|
mm/min (ipm)
|
4000 (157.5)
|
|
Table *
|
Table size
|
mm (inch)
|
1250 × 7000
(49.2 × 275.6)
|
1500 × 8000
(59.1 × 315.0)
|
|
Table loading capacity
|
kg (lb)
|
7000 (15432.1)
|
|
Spindle
|
Max. spindle speed
|
r/min
|
2500
|
|
Number of speed range
|
|
3
|
|
Spindle Taper
|
|
ISO #50, 7/24 taper
|
|
Spindle motor
(30min./cont.)
|
kW (Hp)
|
26 / 22 (34.9 / 29.5)
|
|
Automatic
Tool Changer
|
Tool Shank
|
|
MAS 403 BT50
|
|
Pull stud
|
|
MAS 403 P50T-1 (45°)
|
|
Tool storage capa.
|
ea
|
40 {60}
|
|
Max. tool diameter
|
Continous
|
mm (inch)
|
130 (5.1)
|
|
1 pot empty
|
mm (inch)
|
250 (9.8)
|
|
Max. tool length
|
mm (inch)
|
400 (15.7)
|
|
Max. tool weight
|
kg (lb)
|
25 (55.1)
|
|
Method of tool selection
|
|
Fixed address
|
|
Machine
Dimensions
|
Length x Width
|
mm (inch)
|
20800 × 10700
(818.9 × 421.3)
|
23000 × 10700
(905.5 × 421.3)
|
|
Height
|
mm (inch)
|
4500 (177.2)
|
5000 (196.9)
|
|
Weight
|
kg (lb)
|
58000 (127866.2)
|
86000 (189594.7)
|
| |
|
|
|
|
|
|
|
