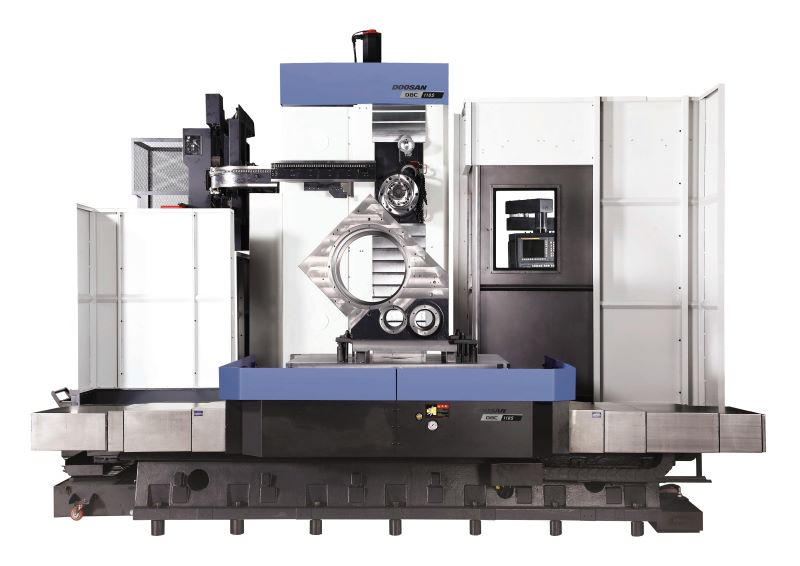

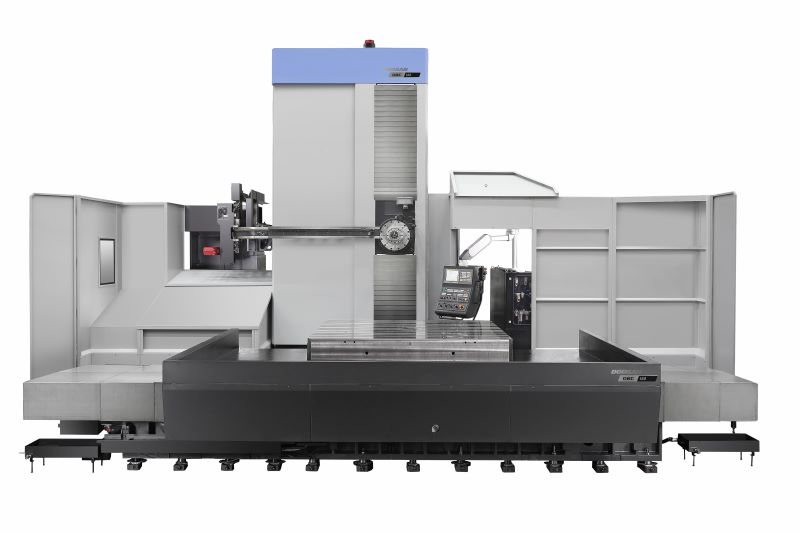

Diversified Line-up for Faster Response to Customers' Requirements The DBC Series offers a wide line-up from compact to large models, from heavy-duty type to high-speed mold processing type.
Enhanced Performance through High-Rigidity & High-Precision Structure
A high-rigidity and high-precision structure has been adopted to improve heavy-duty machining performance.
A high-rigidity and high-precision structure has been adopted to improve heavy-duty machining performance.
B-axis rotary table equipped with high-precision encoder as a standard
B-axis rotary table equipped with high-precision encoder as a standard
Increased Convenience and Productivity The DBC Series offers various options and customized control functions for maximum user convenience.
Automatic Tool Changer (ATC)
Automatic Pallet Changer (APC)
Various head attachments
Doosan Easy Operation package
Complete line-up ranging from compact to super-large types, and from heavy-duty to high-speed machining models is prepared for better and faster response to customer requests.
The DBC series provides various models covering compact, multi-functional, heavy duty and large workpieces.
Nose-type head structure allows easy access to the workpiece and minimal protrusion of boring spindle enables stable cutting.
|
Description
|
Unit
|
DBC 110S
|
DBC 130S
|
DBC 130SL
|
|
Travels
|
Travel distance
|
X-axis
|
mm (inch)
|
2000 (78.7)
|
2500 (98.4)
|
|
Y-axis
|
mm (inch)
|
1500 (59.1)
|
2000 (78.7)
|
|
Z-axis
|
mm (inch)
|
1200 (47.2)
|
1500 (59.1)
|
|
W-axis
|
mm (inch)
|
500 (19.7)
|
600 (23.6)
|
|
Distance from spindle nose to table top
|
mm (inch)
|
0 ~ 1500 (0~59.1)
|
0~2000 (0~78.7)
|
|
Distance from spindle nose to table center
|
mm (inch)
|
550 ~ 1750 (21.7~2.9)
|
|
Feedrate
|
Rapid traverse
|
X, Y, Zaxes
|
m/min
|
12
|
|
W-axis
|
m/min
|
6
|
|
Cutting feedrate
|
X, Y, Zaxes
|
mm/min
|
1 ~ 6000
|
|
Table
|
Table size
|
mm (inch)
|
1400 x 1600 (55.1x63.0)
|
1400 x 1800 (55.1x70.9)
|
|
Swing diameter
|
Without semi- S/G
|
mm (inch)
|
ø2550 (100.4)
|
ø3400 (133.9)
|
|
With semi-S/G
|
mm (inch)
|
ø2100 (82.7)
|
ø2250 (88.6)
|
|
Load capacity
|
1400 x 1600 mm
|
kg (lb)
|
7000
(15432.1)
|
8000 {10000}
(17636.7 {22045.9})
|
-
|
|
1400 x 1800 mm
|
kg (lb)
|
-
|
-
|
22045.9 (48602.2)
|
|
1600 x 3000 mm
|
kg (lb)
|
-
|
-
|
-
|
|
1600 x 1800 mm
|
kg (lb)
|
-
|
-
|
-
|
|
1800 x 2000 mm
|
kg (lb)
|
-
|
-
|
-
|
|
2000 x 2200 mm
|
kg (lb)
|
-
|
-
|
-
|
|
Spindle
|
Max. spindle speed
|
r/min
|
3000
|
2500
|
|
Boring spindle diameter
|
mm (inch)
|
110 (4.3)
|
130 (5.1)
|
|
Quill diameter
|
mm (inch)
|
-
|
-
|
-
|
|
Motor
|
Spindle motor (30 min/cont.)
{AMP UP: 15 min/cont.}
|
kW (Hp)
|
26/22 (34.9/29.5)
{30/22 (40.2/29.5)}*
|
37/30 (49.6/40.2)
|
|
ATC
|
Tool storage capacity
|
ea
|
40 / 60 / 90
|
|
Tool shank
|
|
MAS403 BT50
|
|
Max. tool diameter
|
mm (inch)
|
ø130 / 250 / 400 / 600(1) (5.1 / 9.8 / 15.7 / 23.6)
|
|
Max. tool length
|
mm (inch)
|
600 (23.6)
|
|
Max. tool weight
|
kg (lb)
|
25 (55.1) / 30 (66.1)
|
|
Max. tool moment
|
N·m (ft-lbs)
|
34.3 (25.3)
|
|
Method of tool selection
|
|
Fixed address
|
|
Power source
|
Electric power supply (rated capacity)
|
kVA
|
70
|
|
Machine dimensions
|
Height
|
mm (inch)
|
4230 (166.5)
|
4860 (191.3)
|
|
Length x Width
|
mm (inch)
|
5520 x 5900 (217.3 x 232.3)
|
7450 x 6800
(293.3 x 267.7)
|
|
Weight
|
kg (lb)
|
29000 (63933.1)
|
30000 (66137.7)
|
36000 (79365.2)
|
|
CNC system
|
-
|
FANUC 32i
|
DOOSAN FANUC i
|
