CNC SYSTEM

•  Graphical control with full programming and machine control facilities in a user-friendly computer environment. Main features include:

•  Programmable multi-axis control.

  ■Y1-Y2 cylinder axes

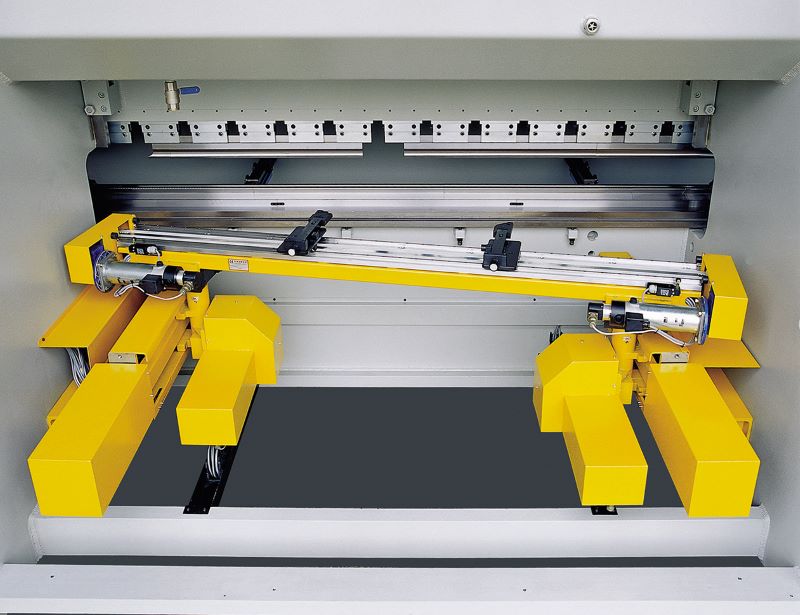

  ■ X1-X2-R1-R2-Z1-Z2 backgauge axes

  ■ CNC crowning axis

  ■Modular expansion for additional axes

•  High memory capacity for program steps and tooling data

•  High number of product and bend repeat possibility

•  Direct graphical programming with automatic computation of all axis positions and bend sequence in full graphic simulation

•  Product programming with direct angle input or in absolute dimensions. For each CNC program and bend sequence, the and/or computed functions include: bending length/thickness, material selection, tooling selection, bend method, mute position, pinching point, press force/speed, incremental travel and retraction of backgauge, dwell time, delay time for axes re-positioning, decompression stroke/speed, tilt adjustment, corrections on Y and X axes

•  Manual operation of all axes

•  Teach-in on all axes

•  Operator selectable languages

•  Integrated diagnostic software

•  Memory storage on USB flashdisk

ACCESSORIES STANDARD

•  European-style top tool holders with wedges

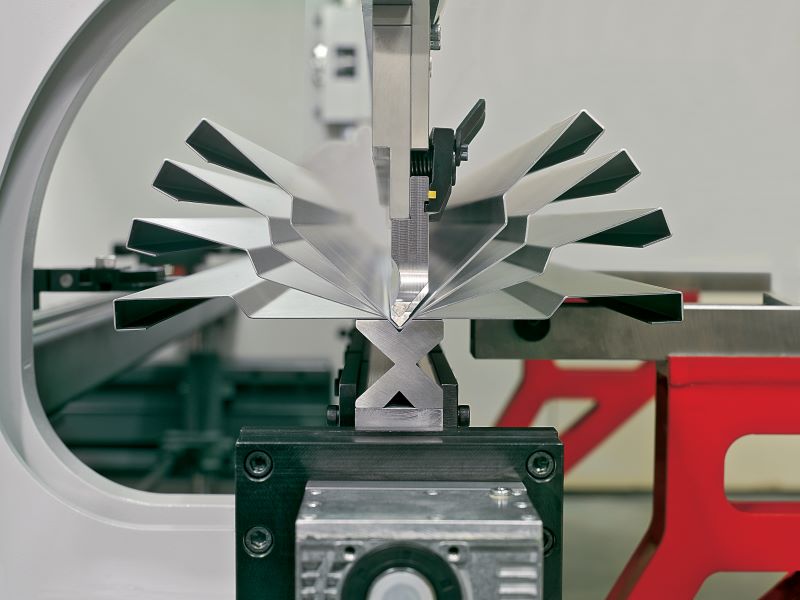

•  Sectioned (gooseneck) punch and multi-vee die block (all tooling precisely ground)

•  Operation console with double foot-switch

•  Linear front-arm guides

•  Electrically-interlocked side and rear guards

OPTIONAL

•  Manual or power-driven (CNC) crowning tables

•  Top tool manual quick-release clamps

•  Hydraulic tool clamping systems

•  Special tooling for customer applications:

  ■Special-profile top and bottom tools

  ■ Single-vee dies with table adapters

•  Front light guards or front laser protection for enhanced safety

•  Less Energy Consumption
