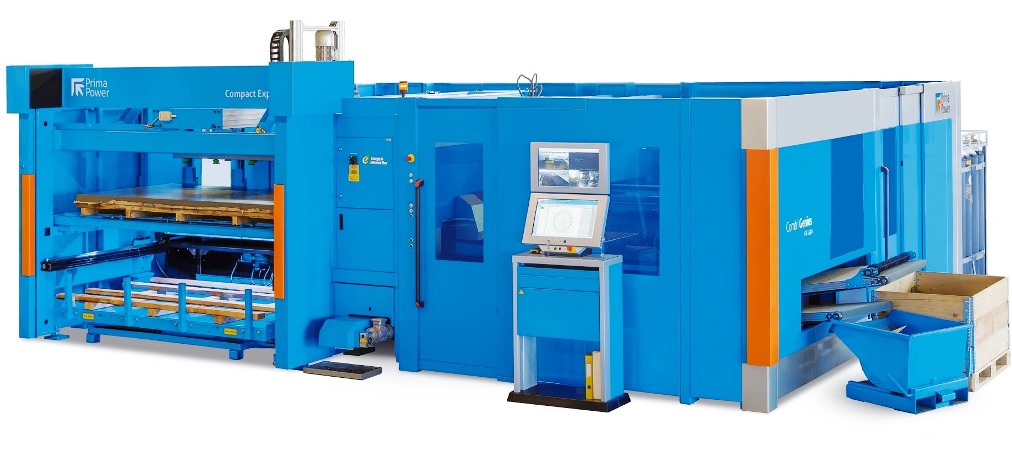

The punching and laser cutting combi machines were introduced to the Prima Power product family in 198 . It7
was noticed that combining different work stages accelerated the manufacture of the final product and
reduced the production costs.

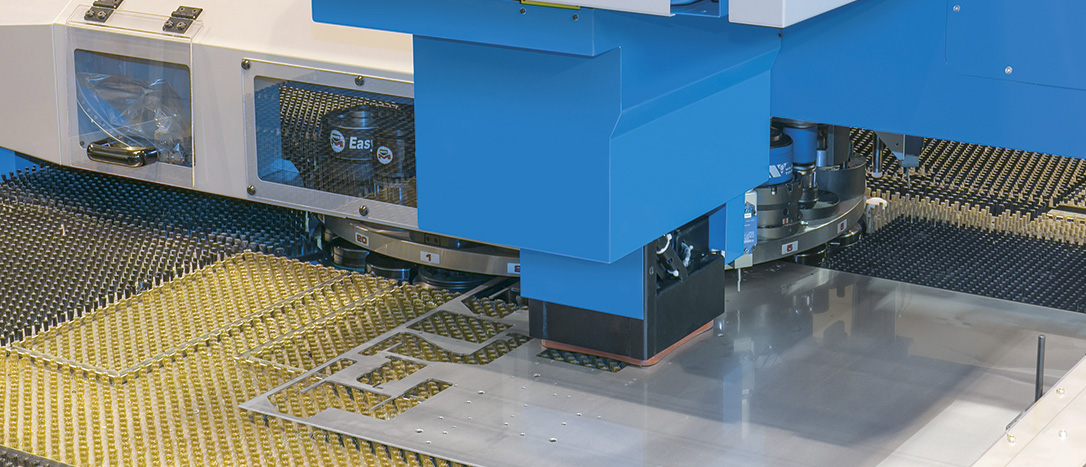

A modern combi machine uses numerically controlled, servo-electric axes, which provides outstanding energy
efficiency, low maintenance requirement and a high speed of operation. The cornerstones of its productivity
include large tool capacity, a wide range of special tools available and easy and fast setup change.

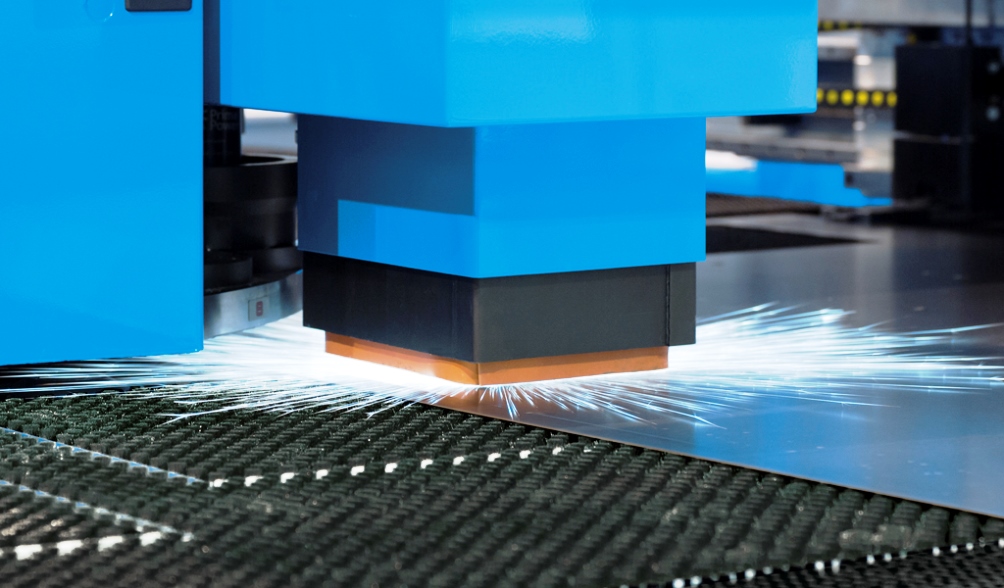

As the best laser power source for the combi machine, fiber laser has a very high efficiency upto cut material
to 8 mm thickness.
All this capacity and efficiency is controlled with Prima Power’s own software.
|
Max sheet size:
|
2,500 mm x 1,250 mm
|
|
Ram force:
|
230 kN (25 US Tons)
|
|
Hit speed:
|
700 hpm
|
|
Positioning speed:
|
108 m/min
|
|
Index tool rotation speed:
|
166 rpm
|
|
Standard turret:
|
20 stations; 250 tools (4 index, 35 tools)
|
|
Fiber laser power:
|
1 or 3 kW
|
|
Max. sheet thickness, punch and laser:
|
8 mm (Aluminium, Mild steel, Stainless steel)
|
|
Max sheet weight:
|
250 kg
|
|
Average power consumption:
|
3.2 kW (punch) 3.5 kW (1 kW laser) 10 kW (3 kW laser)
|
