Equipped with a high-speed, high-rigidity spindle as a standard feature Equipped with a dual contact and built-in type spindle as a standard feature for high rigidity and minimum vibration.

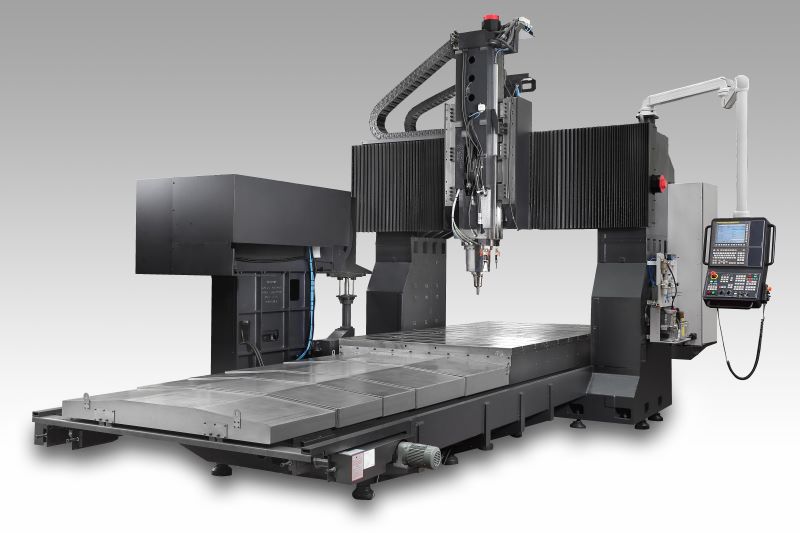

Stabilize structure for higher level of precision Apply double column structure & 3 LM guide way for high precision.
Easy operation for improving convinience to use NC system Easy operation for user's convenient machine operation.The EOP functions for the user-friendliness has improved the convenience of customers.
Higher productivity can be achieved with the CAM-type tool changer that supports faster tool changing.
Various options are available to satisfy the customers’ requirements
The software developed by Doosan's own technology provides numerous functions designed for convenient operation.
|
Description
|
Unit
|

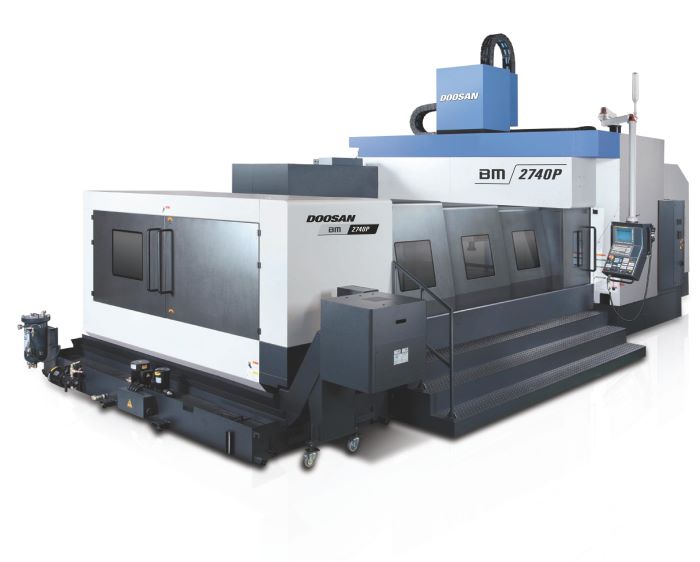

BM 2740P
|
|
Tavel
|
Travel distnace
|
X axis
|
mm (inch)
|
4000 (157.5)
|
|
Y axis
|
mm (inch)
|
2700 (106.3)
|
|
Z axis
|
mm (inch)
|
500 (19.7)
|
|
Spindle to table surface
|
mm (inch)
|
80 ~ 580 (3.1 ~ 22.8)
|
|
Table
|
Distance between columns
|
mm (inch)
|
2700 (106.3)
|
|
Table size
|
mm (inch)
|
4000 x 2500 (157.5 x 98.4)
|
|
Loading capacity
|
kg (lb)
|
3000 (6613.8)
|
|
Table surface
|
mm (inch)
|
T-SLOT (14-300 x 24H8 (14-11.8 x 0.9H8))
|
|
Spindle
|
Max. spindle speed
|
r/min
|
12000
|
|
Taper
|
-
|
ISO #40
|
|
Max. spindle power(S3/Cont.)
|
kW (Hp)
|
22 / 18.5 (29.5 / 24.8)
|
|
Max. spindle torque
|
N·m (ft-lbs)
|
204 (150.6)
|
|
Feedrate
|
Rapid feedrate
|
X axis
|
m/min (ipm)
|
16 (629.9)
|
|
Y axis
|
m/min (ipm)
|
24 (944.9)
|
|
Z axis
|
m/min (ipm)
|
36 (1417.3)
|
|
ATC
|
Tool storage capacity
|
ea
|
30 {40}*
|
|
Max. tool diameter
|
Continous
|
mm (inch)
|
80 {76}
|
|
Without Adjacent Tools
|
mm (inch)
|
125 (4.9)
|
|
Max. tool length
|
mm (inch)
|
300 (11.8)
|
|
Max. tool weight
|
kg (lb)
|
8 (17.6)
|
|
Max. tool moment
|
N·m (ft-lbs)
|
5.88 (4.3)
|
|
Tool selection type
|
|
MEMORY RANDOM
|
|
Tool change time(Tool to Tool)
|
s
|
1.5
|
|
Utility
|
Required power capacity
|
kVA
|
55.3
|
|
Compressed air
|
Mpa (psi)
|
0.54 (78.3)
|
|
Coolant system
|
Tank capacity
|
L (gal)
|
660 (174.4)
|
|
Machine size
|
Height
|
mm (inch)
|
4770 (187.8)
|
|
Length
|
mm (inch)
|
4450 (175.2)
|
|
Width
|
mm (inch)
|
8690 (342.1)
|
|
Weight
|
kg (lb)
|
29000 (63933.1)
|
|
Controller
|
CNC system
|
|
FANUC 32i
|
